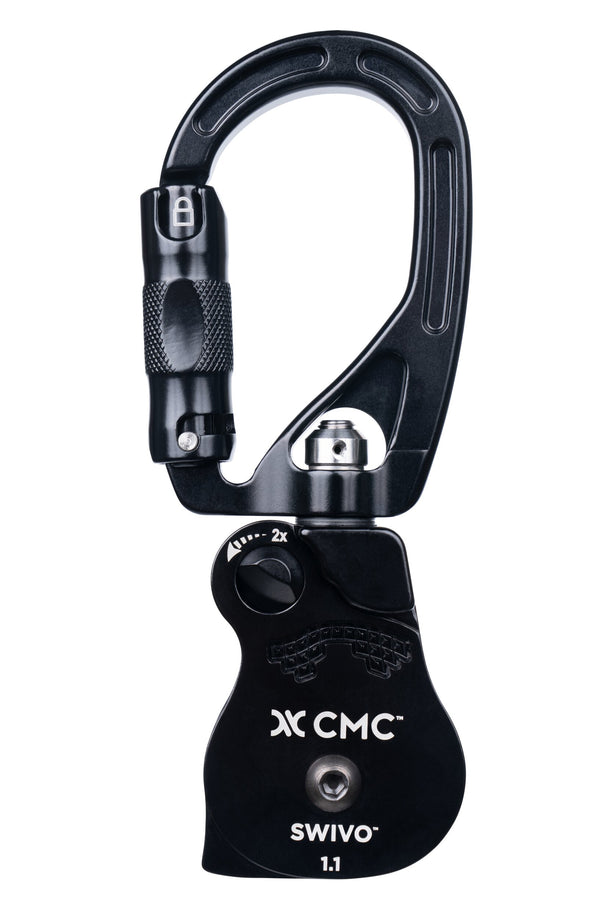

  • CMC SWIVO Swivel Pulley, swivel pulley with sealed bearing, SKU 300350

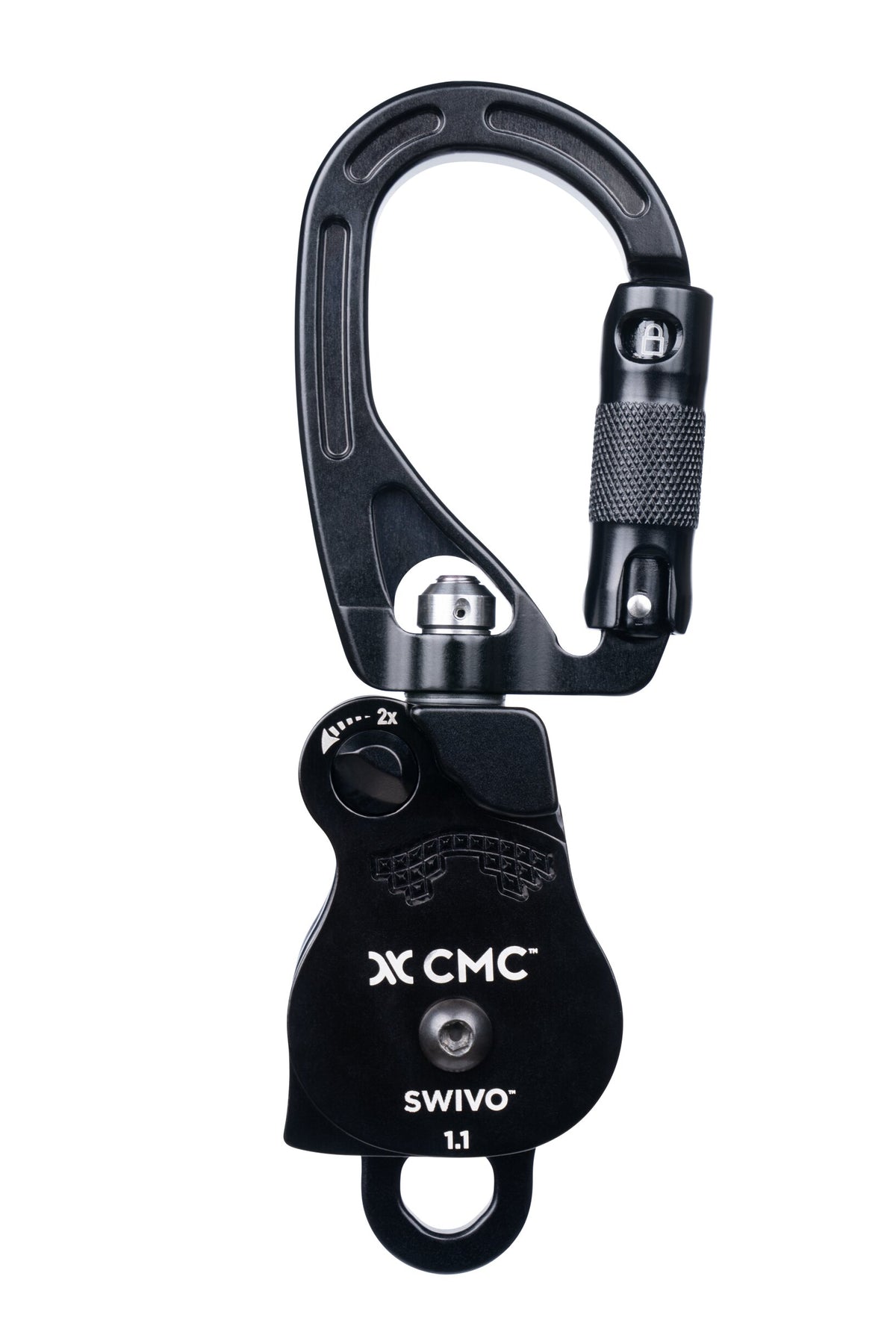

  • CMC SWIVO Swivel Pulley, swivel pulley with sealed bearing, SKU 300352, alternate view - imagen 2

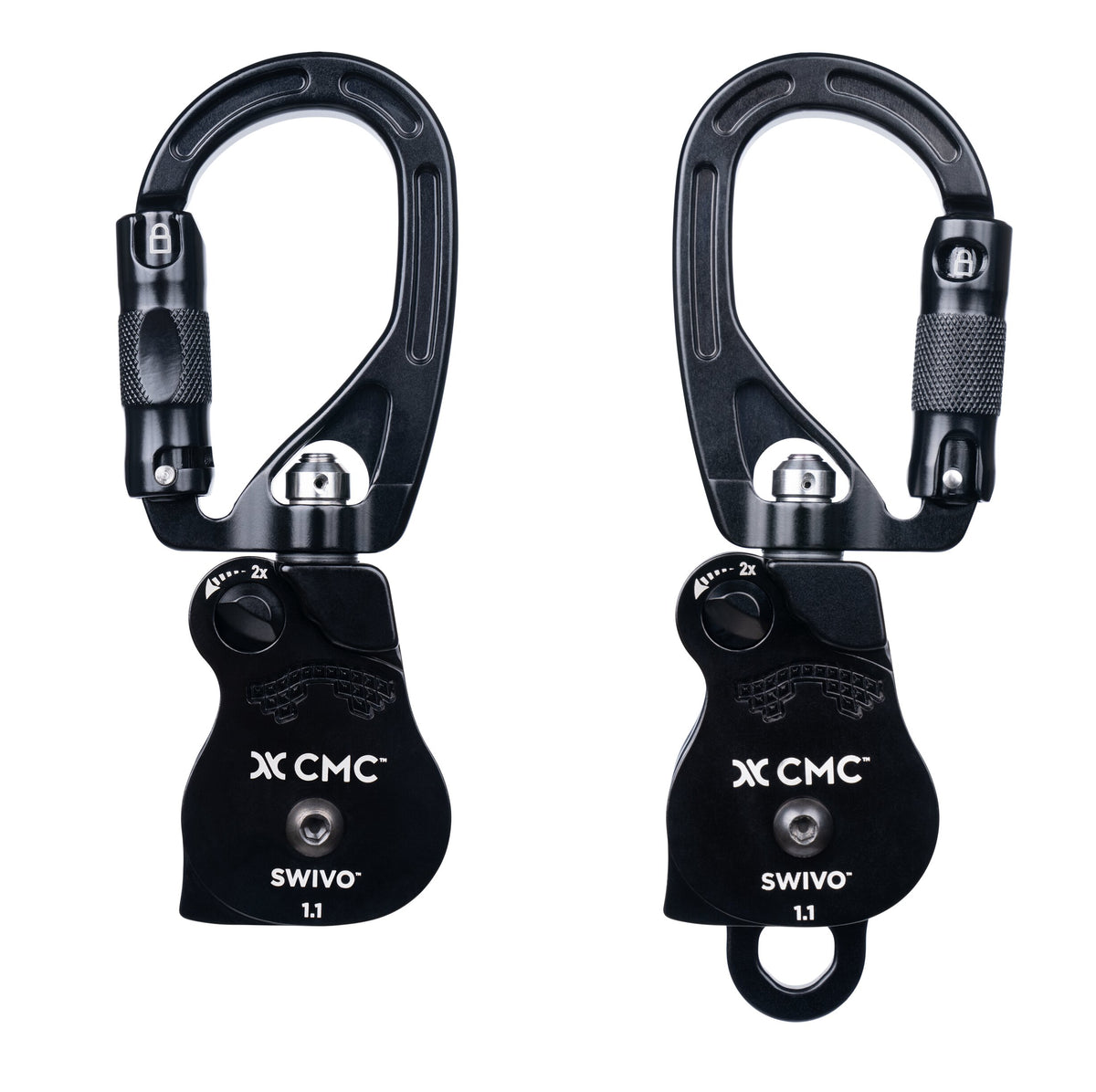

  • CMC SWIVO Swivel Pulley, swivel pulley with sealed bearing, detail view - imagen 3

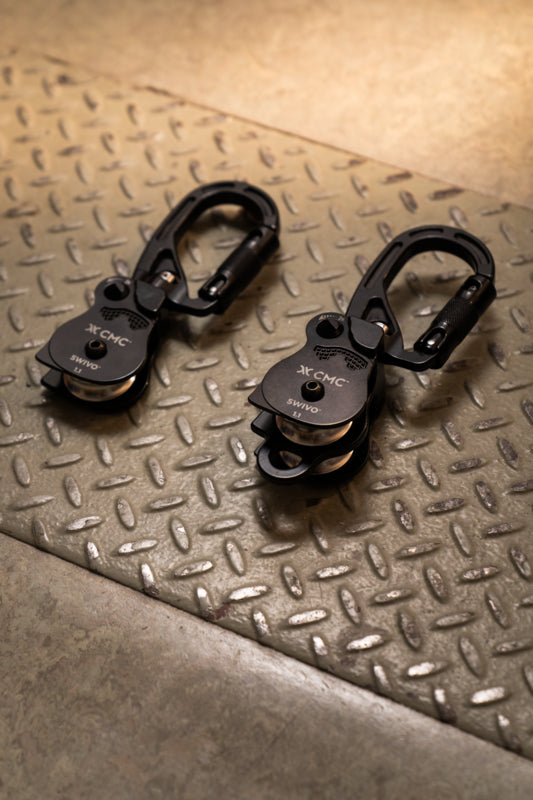

  • CMC SWIVO Swivel Pulley, swivel pulley with sealed bearing, side view - imagen 4

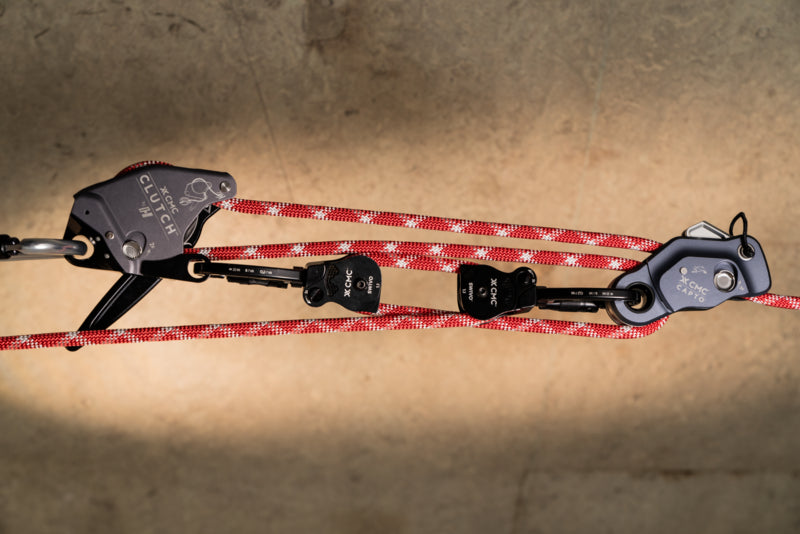

  • CMC SWIVO Swivel Pulley, swivel pulley with sealed bearing, rear view - imagen 5

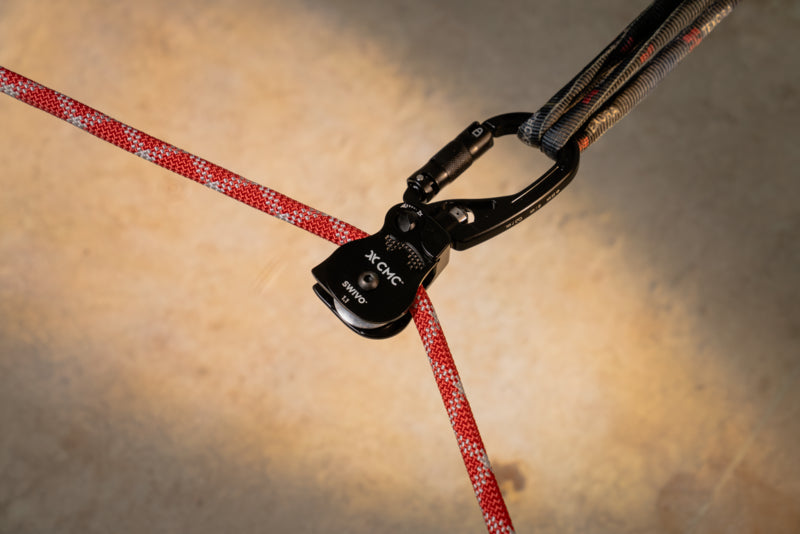

  • CMC SWIVO Swivel Pulley, swivel pulley with sealed bearing, close-up detail - imagen 6

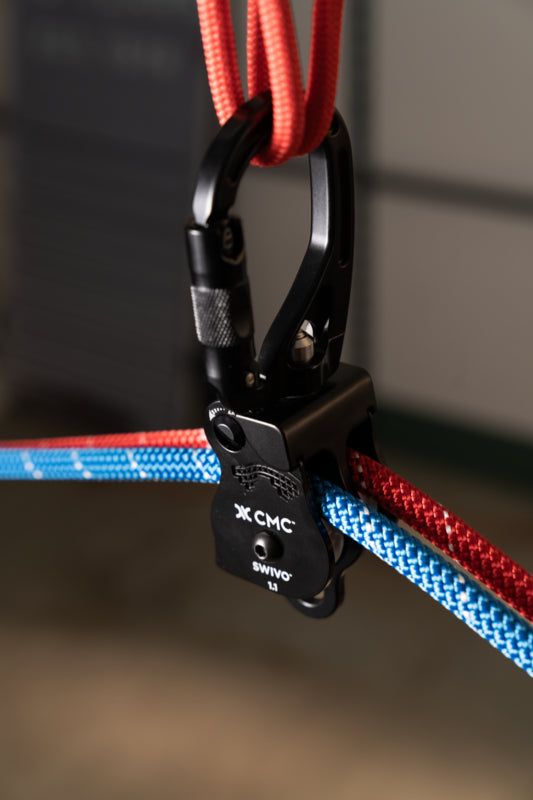

  • CMC SWIVO Swivel Pulley, swivel pulley with sealed bearing, shown in use - imagen 7

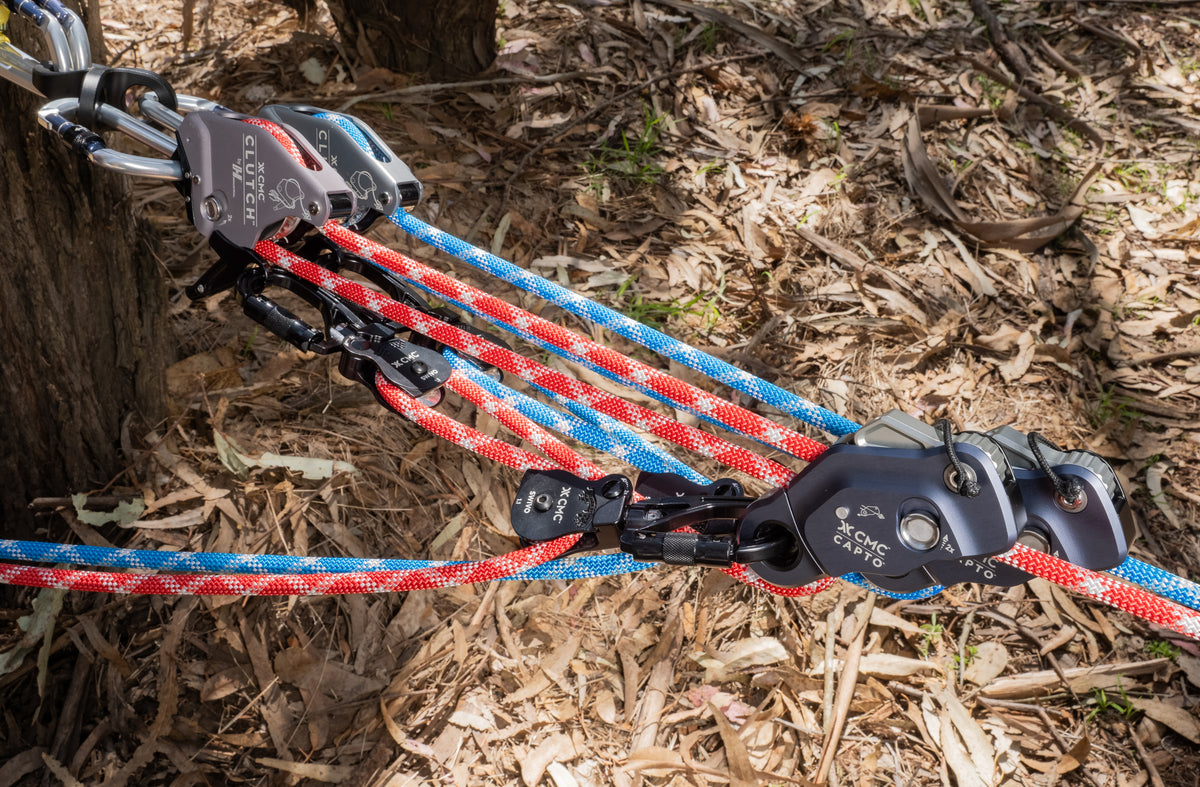

  • CMC SWIVO Swivel Pulley, swivel pulley with sealed bearing, product view 8 - imagen 8

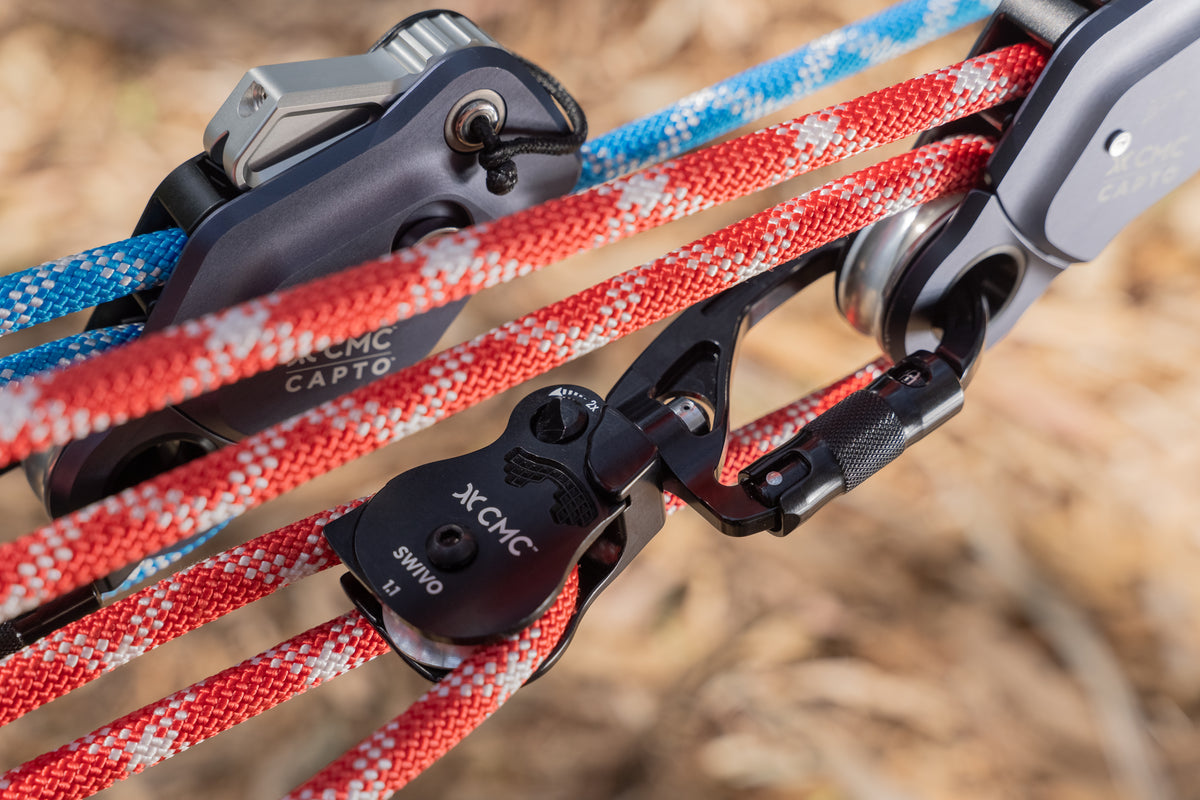

  • CMC SWIVO Swivel Pulley, swivel pulley with sealed bearing, SKU 300350, product view 10 - imagen 9

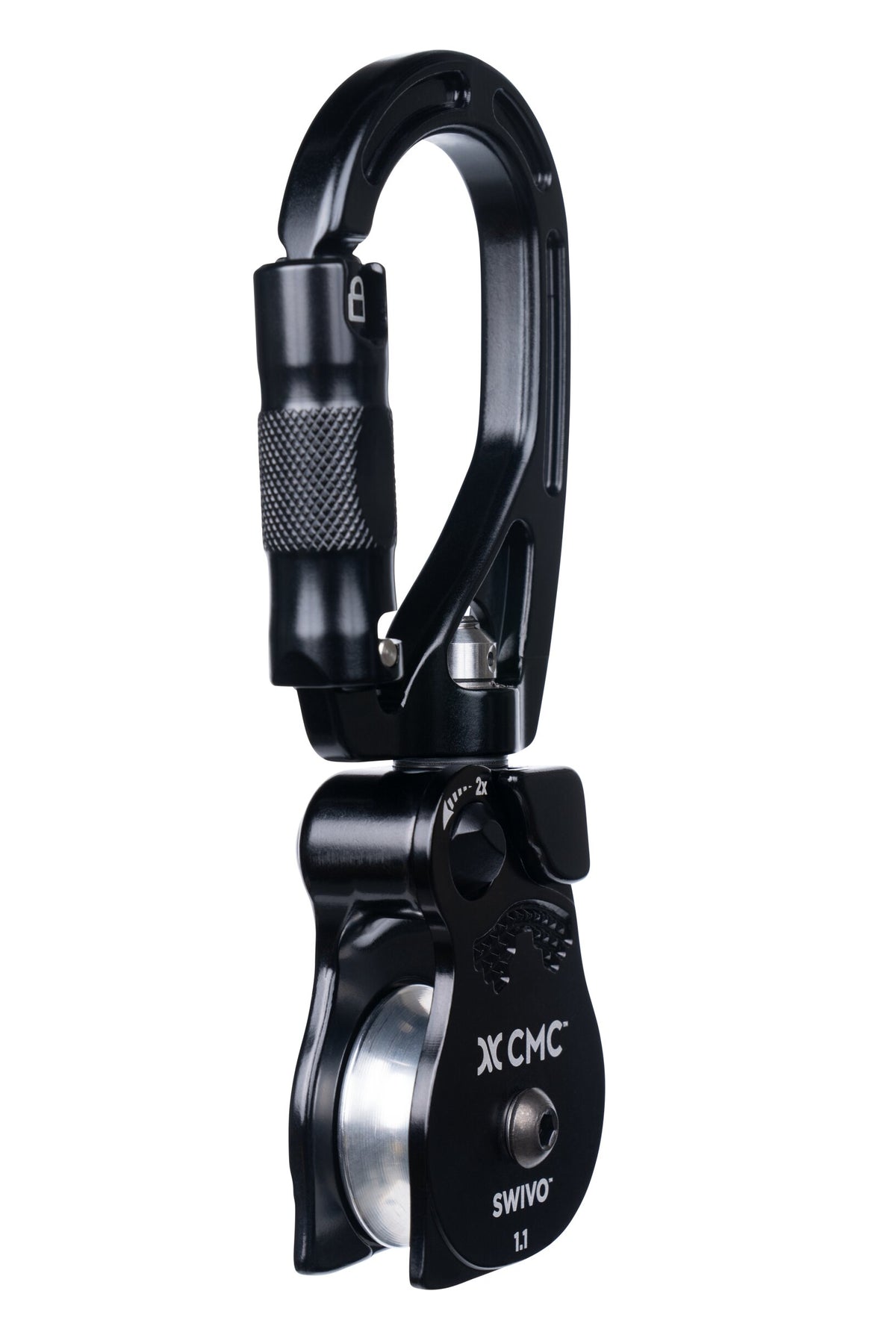

  • CMC SWIVO Swivel Pulley, swivel pulley with sealed bearing, SKU 300350, product view 11 - imagen 10

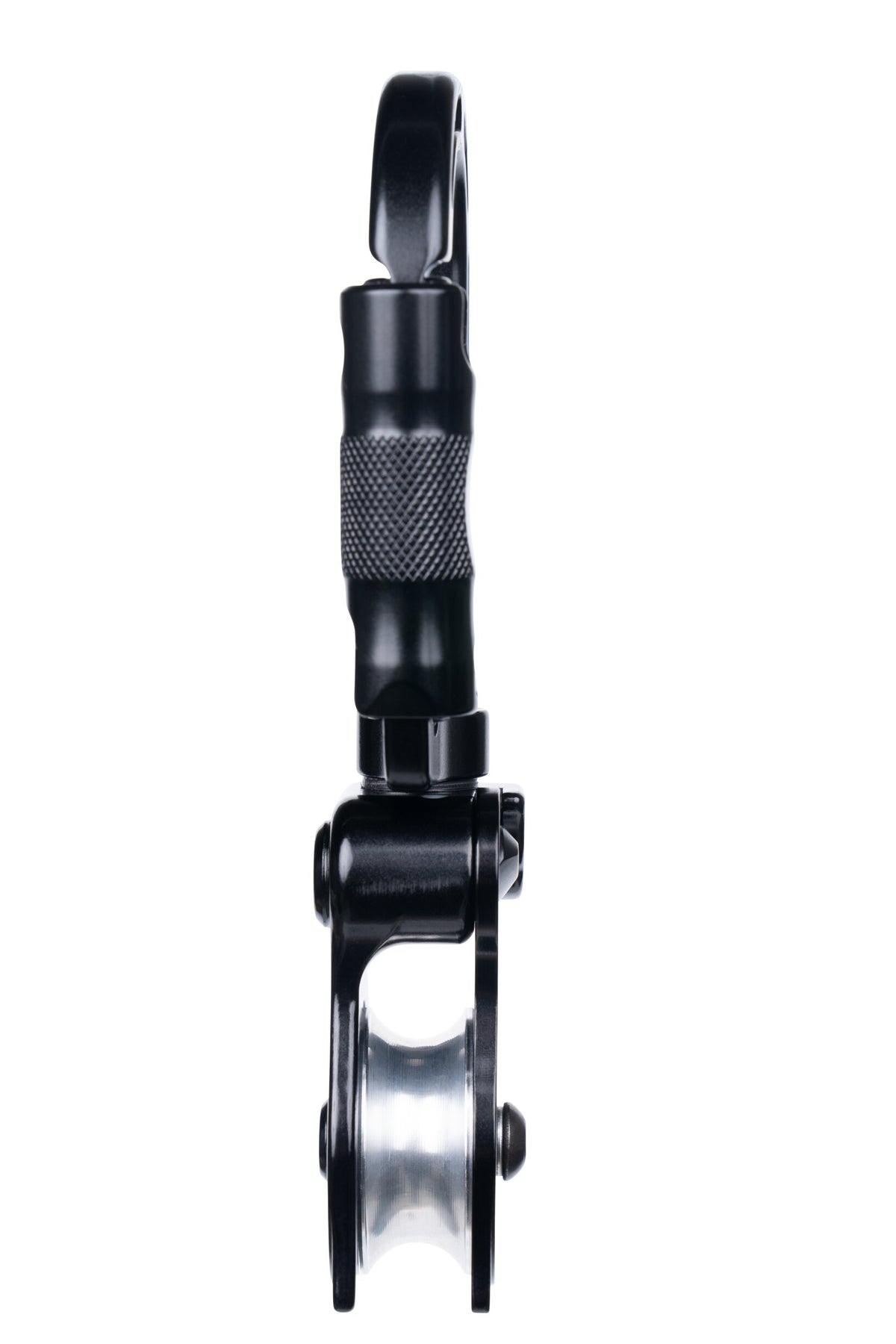

  • CMC SWIVO Swivel Pulley, swivel pulley with sealed bearing, SKU 300350, product view 12 - imagen 11

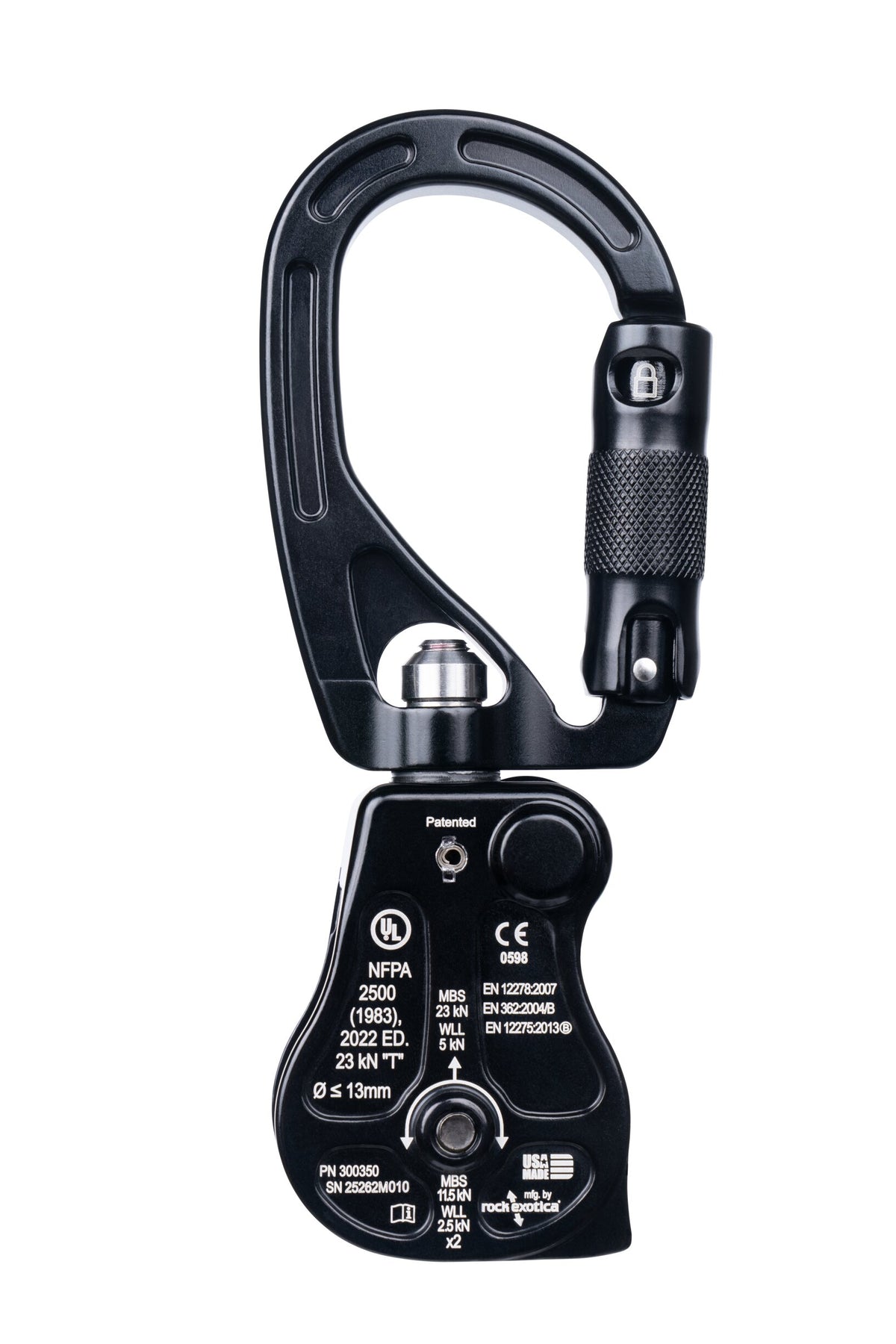

  • CMC SWIVO Swivel Pulley, swivel pulley with sealed bearing, SKU 300352, product view 13 - imagen 12

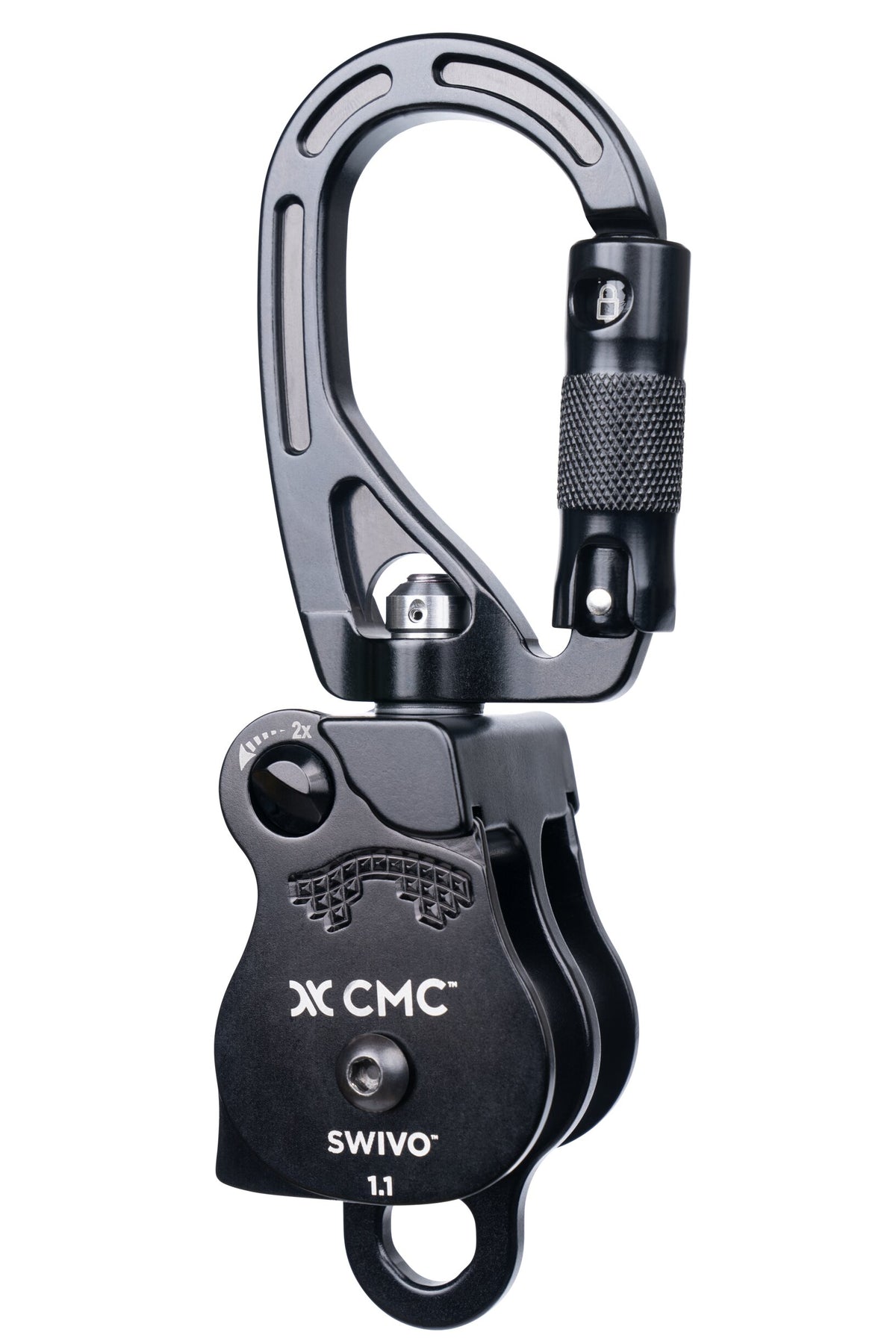

  • CMC SWIVO Swivel Pulley, swivel pulley with sealed bearing, SKU 300352, product view 14 - imagen 13

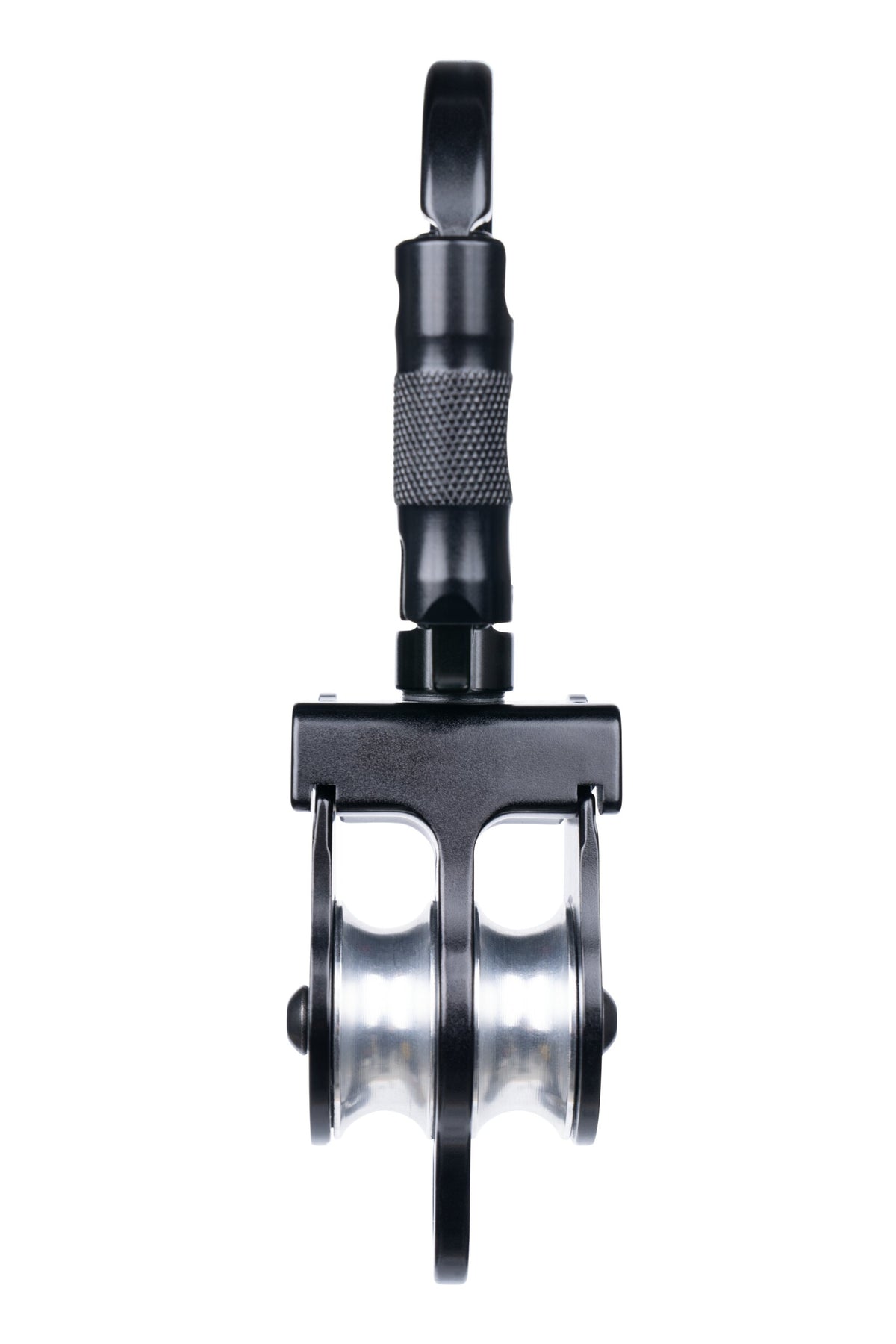

  • CMC SWIVO Swivel Pulley, swivel pulley with sealed bearing, SKU 300352, product view 15 - imagen 14

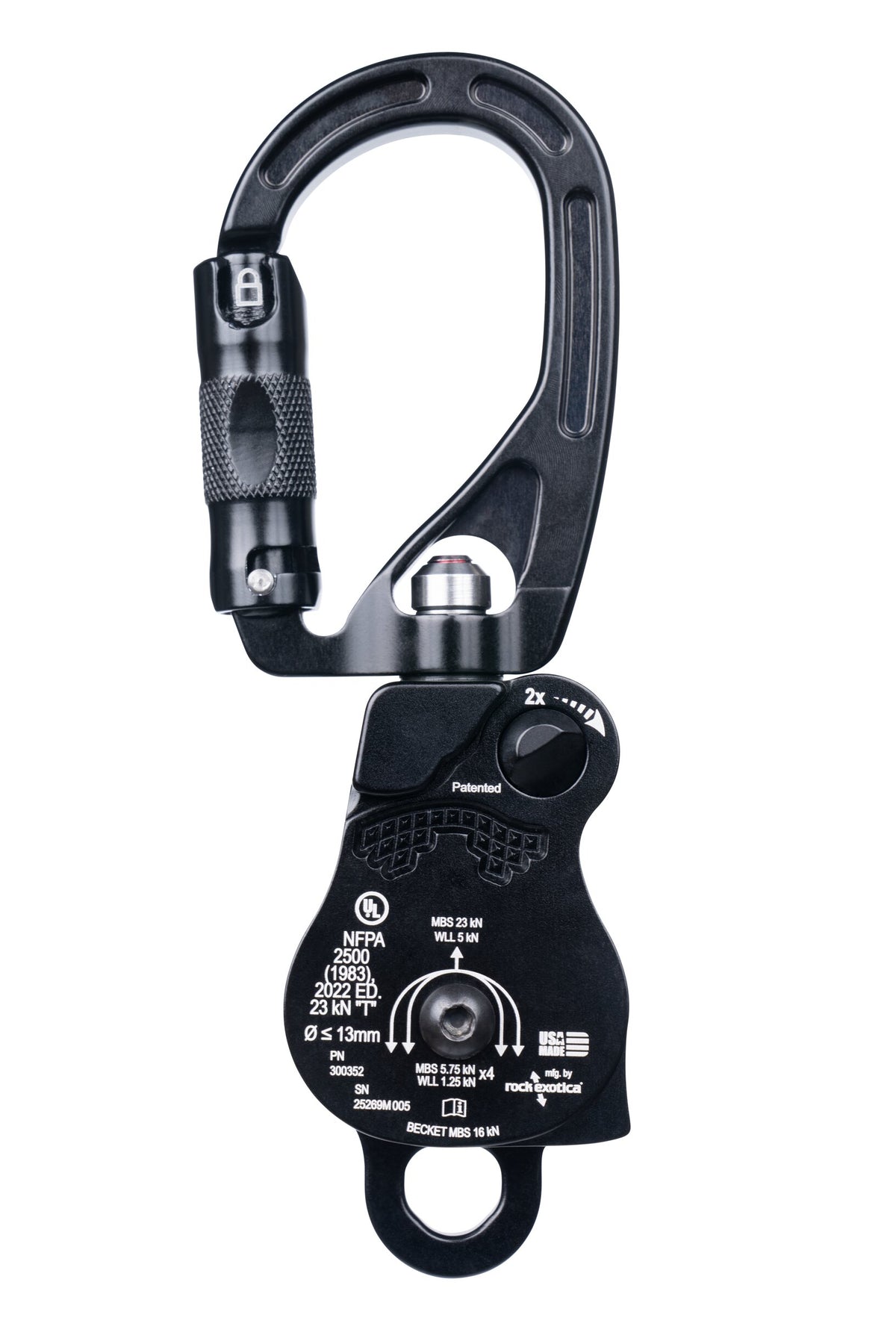

  • CMC SWIVO Swivel Pulley - imagen 15

CMC SWIVO Swivel Pulley

CMC |
SKU: 300350
$146.53
Pulley: Single Sheave
  • 3-in-1 Design: Combines a swivel, pulley, and oval carabiner into a single compact device.
  • CAPTO Compatible: Connects easily to CAPTO and other wide attachment points for 5:1 mechanical advantage systems.
  • One-Hand Loading: Pivoting sideplate and double-action detent button allow one-hand rope loading with accidental-opening protection.
  • Sealed Ball Bearing Sheave: A 1.1 in sheave on sealed ball bearings delivers high hauling efficiency.
View Full Description Technical Data
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Please select country
Please enter correct zip code

You may also like

Test heading

CMC SWIVO

SWIVO combines a swivel, pulley and oval carabiner into a single compact, lightweight device compatible with CAPTO for efficient hauling and mechanical advantage systems.

Key Features and Highlights

  • Combined Design: Integrates a swivel, pulley and oval carabiner in one device, reducing system length and allowing more travel.
  • CAPTO Compatible: Connects easily to the CAPTO and other wide attachment points, simplifying M/A systems including a 5:1 with CAPTO and CLUTCH.
  • Smart Handling: A pivoting sideplate allows rope loading without disconnecting from anchor, and a double-action detent button prevents accidental opening.
  • Efficient Sheave: The 1.1 in sheave is mounted on sealed ball bearings for high efficiency, with a rotating swivel that aligns rope with the direction of pull.
  • CNC Machined: Built for optimal strength and weight, with a prusik minding sideplate that prevents entanglement.

Who Is This Product For?

Ideal for: rescue, work-at-height and tree care professionals who need a compact swivel pulley for hauling and mechanical advantage systems, compatible with rope up to 13 mm (1/2 in).

Materials and Construction

The SWIVO Single weighs 209 g (.46 lb) with a single aluminum sheave and measures 163 x 64 mm (6.4 x 2.5 in); it is rated NFPA Technical Use, CE EN 362/B, EN 12275/B and EN 12278, with a minimum breaking strength of 23 kN (5,170 lbf). The SWIVO Double weighs 308 g (.68 lb) with a double aluminum sheave and measures 185 x 66 mm (7.3 x 2.6 in), sharing the same 23 kN (5,170 lbf) minimum breaking strength. Both are finished in black.
