Doughty All Weather Slimline Quick Trigger Clamp

Doughty All Weather Slimline Quick Trigger Clamp

Part of our new All Weather clamp range manufactured with 316 stainless steel and AW6082 T6 aluminium grade parts which make it ideal for use at outdoor events.

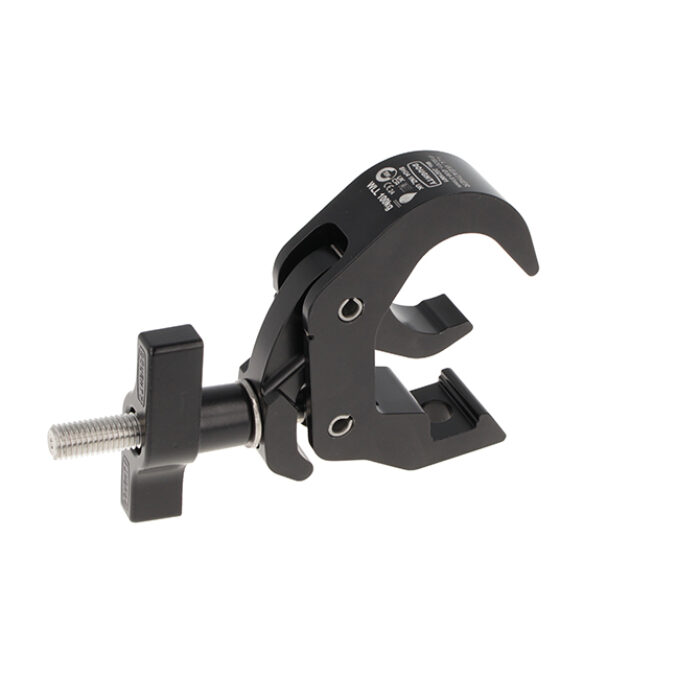

A high tensile extruded aluminium quick trigger clamp that is suitable for 38-51mm (1.50″ – 2.01″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide. Slotted to hold captive an M10 or M12 nut or bolt head.

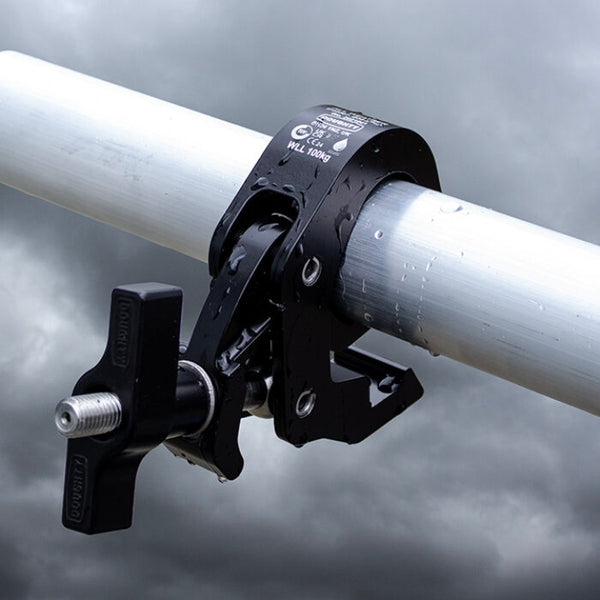

Ideal for hanging moving heads on trussing as it will not damage the cords. Available in a powder coated black finish.

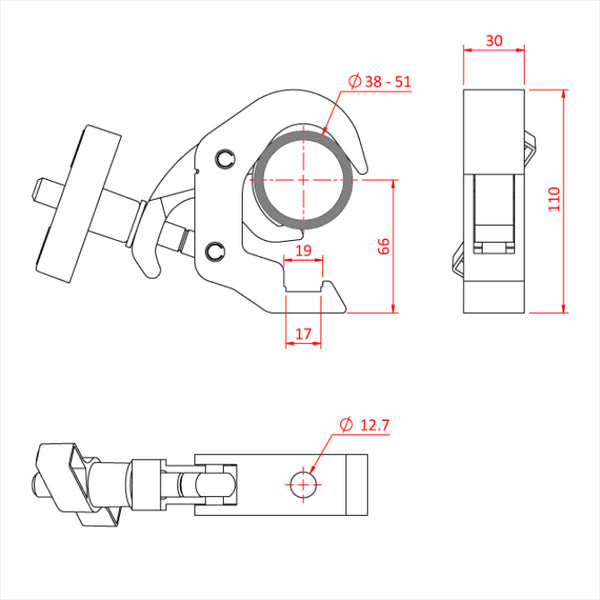

Specifications

• Clamp Width: 30mm (1.18")
• Finish: Black Powder Paint
• Tube Diameter: 38-51mm (1.50" – 2.01")
• WLL: 100Kg

Downloads

IP58301-Data-Sheet
