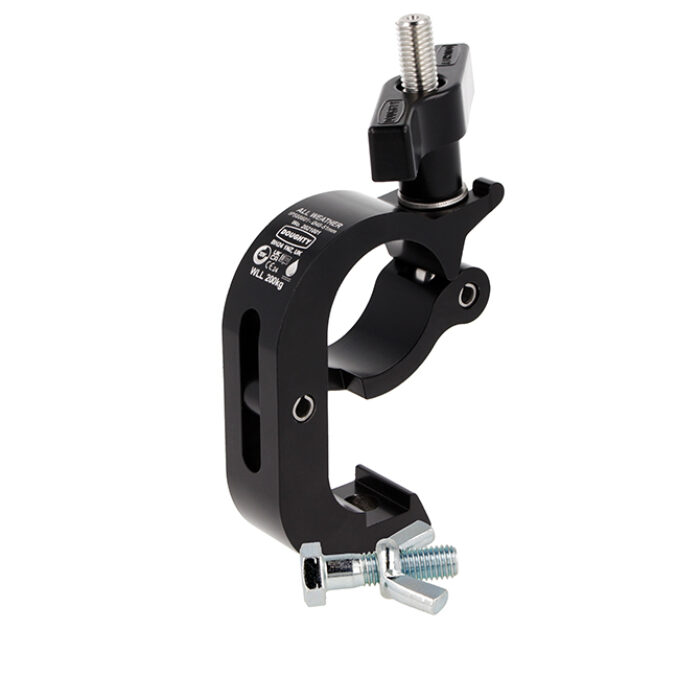

Doughty All Weather Trigger Hook Clamp

Doughty All Weather Trigger Hook Clamp

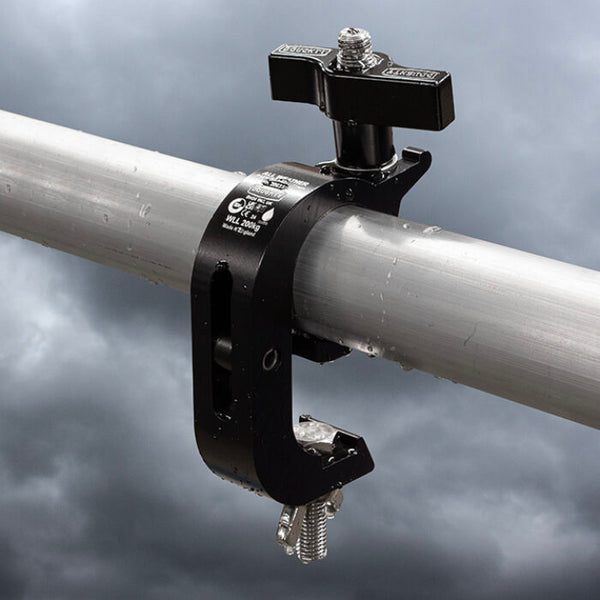

Part of our new All Weather clamp range manufactured with 316 stainless steel and AW6082 T6 grade aluminium parts which make it ideal for use at outdoor events.

A high tensile extruded aluminium trigger clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes. Has a WLL of 200Kg and is 30mm (1.18″) wide. Slotted to hold captive an M12 nut or bolt head and supplied with an M12 X 45 bolt and wing nut. Ideal for hanging large moving heads on trussing as it will not damage the cords. Available in polished Silver or powder coated Black.

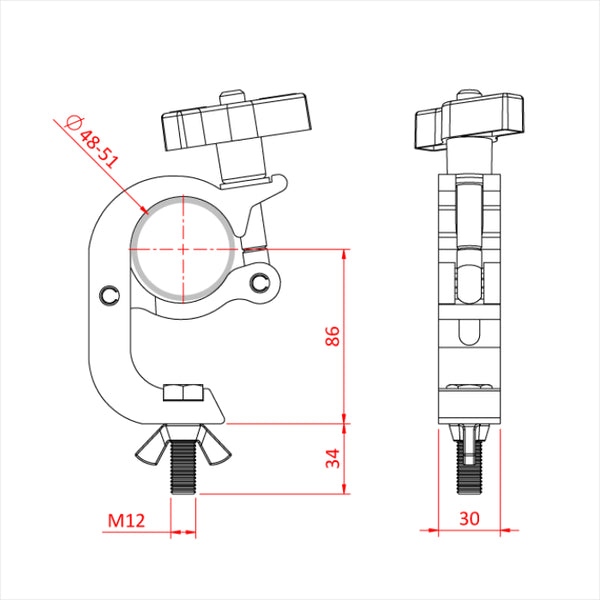

Specifications

• Clamp Width: 30mm (1.18")
• Finish: Black Powder Paint
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• WLL: 200Kg

Downloads

IP57110-Data-Sheet
