Doughty Big Ben Clamp (Slimline)
Product No. T58018
Pay in full or split into interest-free installments with Shop Pay.
Shipping calculator
Payment methods
Product details

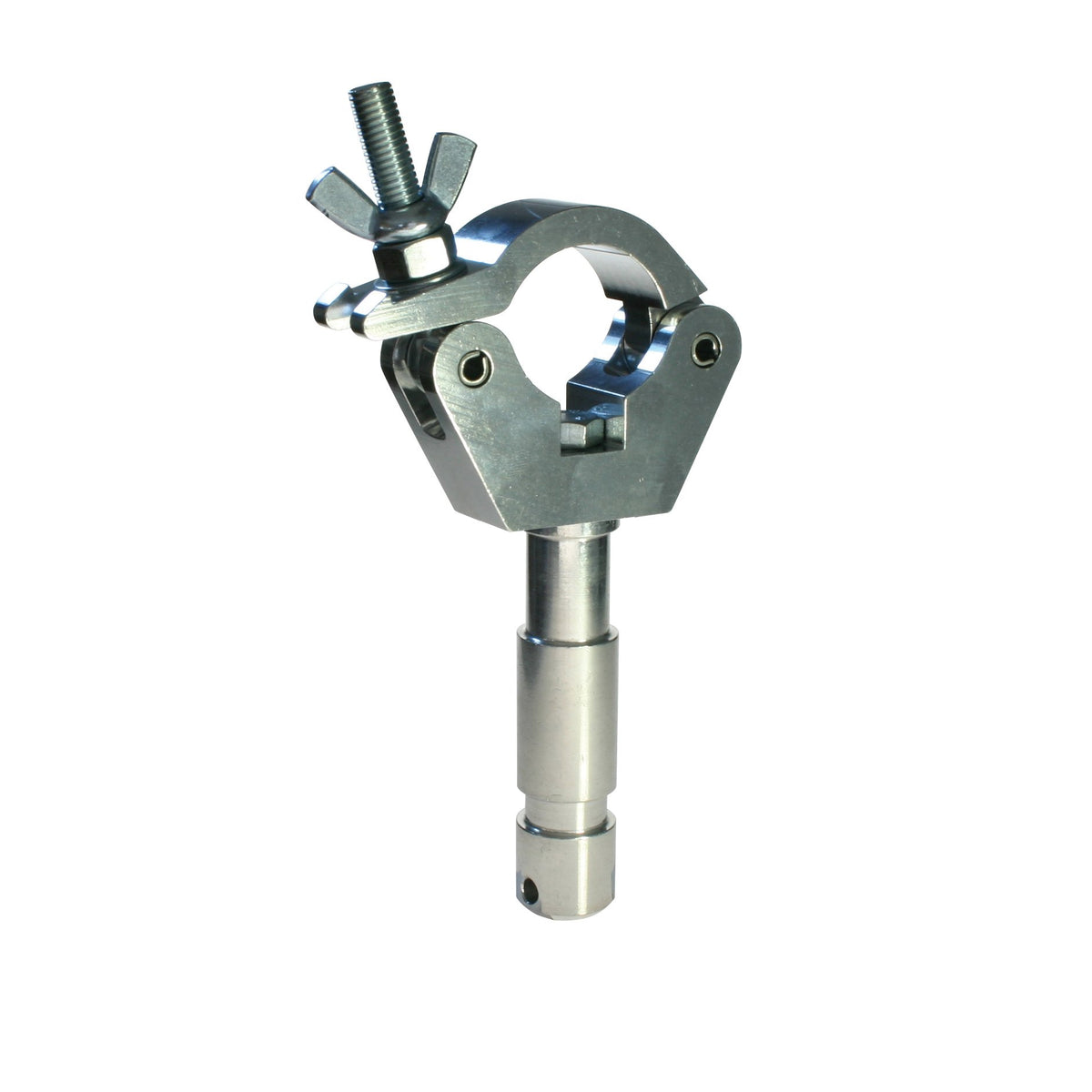

Doughty Big Ben Clamp (Slimline)
The Slimline Doughty Big Ben Clamp is designed for professional rigging applications in the TV, broadcast, film, theatre, and photographic industries. Supplied with a 28mm Spigot, it is ideal for securely mounting TV and broadcast luminaires.
Its slim profile allows for convenient use between truss webs, offering flexibility and efficiency in compact rigging environments. The clamp is slotted to captivate an M12 nut or bolt head, ensuring safe and secure installation.
Manufactured from high tensile Aluminium Extrusion, this clamp is available in either a Black or Polished Aluminium finish. Available in Euro and Din specifications.
Downloads:
Key Features:
- Supplied with a 28mm Spigot for mounting TV/broadcast luminaires
- Slim profile suitable for use between truss webs
- Captive slot for M12 nut or bolt head
- Made from high tensile Aluminium Extrusion
- Available in Black or Polished Aluminium finishes
Specifications:
- SWL: 200 Kg
- Tube Diameters: 48mm to 51mm
- Width: 30mm
- Fixings: 28mm Spigot
- Weight: 0.48 Kg
- Material: Aluminum
- Finish: Black or Polished Aluminium
References:
- Designed for use in theatre, film, TV, and photographic industries
- Available in Euro and Din specifications
- Contact us via chat for further inquiries
