Doughty Lightweight Quick Trigger Clamp

Doughty Lightweight Quick Trigger Clamp

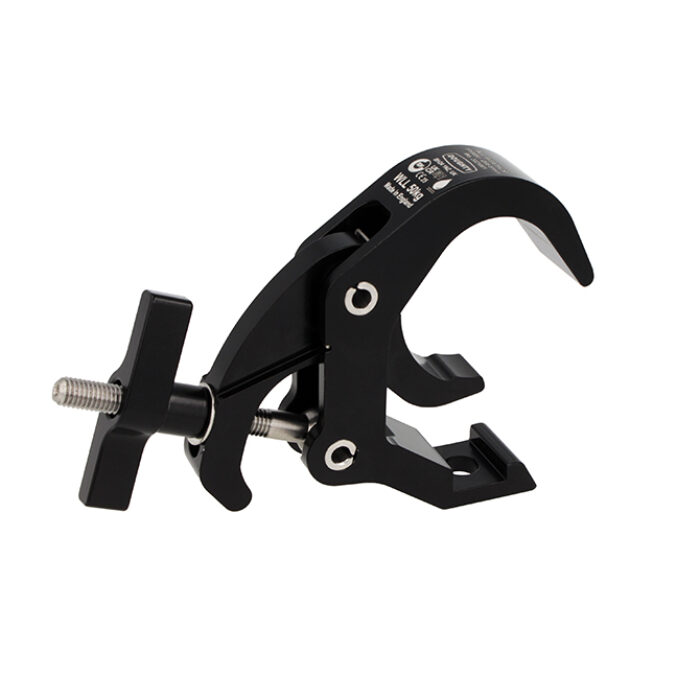

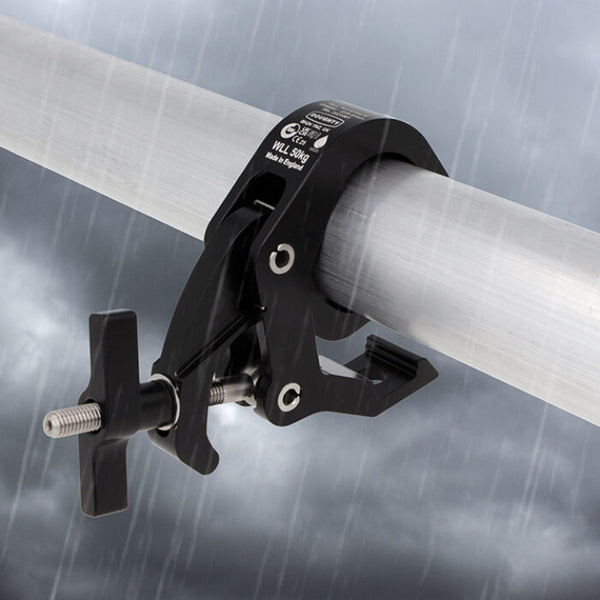

Part of our new All Weather clamp range manufactured with 316 stainless steel and AW6082 T6 grade parts which make it ideal for use at outdoor events. A high tensile extruded aluminium quick trigger clamp that is suitable for 38mm to 51mm diameter tubes. It has a WLL of 50Kg and is 25mm wide.

Slotted to hold captive an M10 nut or bolt head and supplied with an A4 grade stainless steel M10 X 35 bolt and wing nut. Ideal for hanging moving heads on trussing as it will not damage the cords. Available in powder coated black.

Available to pre-order.

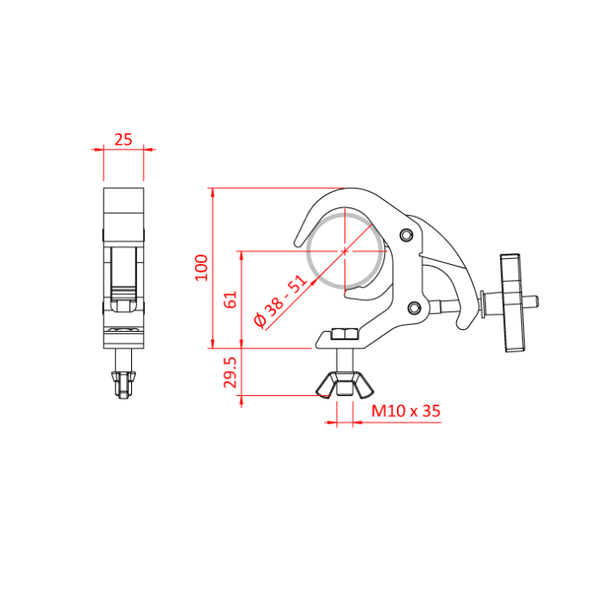

Specifications

• Clamp Width: 25mm (0.98")
• Finish: Black Powder Paint
• Tube Diameter: 38-51mm (1.50" – 2.01")
• WLL: 50Kg
• Fixing: M10

Downloads

IP58650-Data-Sheet
