OZ Lifting Stainless Steel Beam Clamp
Product No. OZSS1BC
Regular price
$279.37
$279.37
Save $25 when you subscribe to our newsletter (for orders over $250).
Subscribe now
Shipping calculator
Please enter correct zip code
Payment methods
Product details

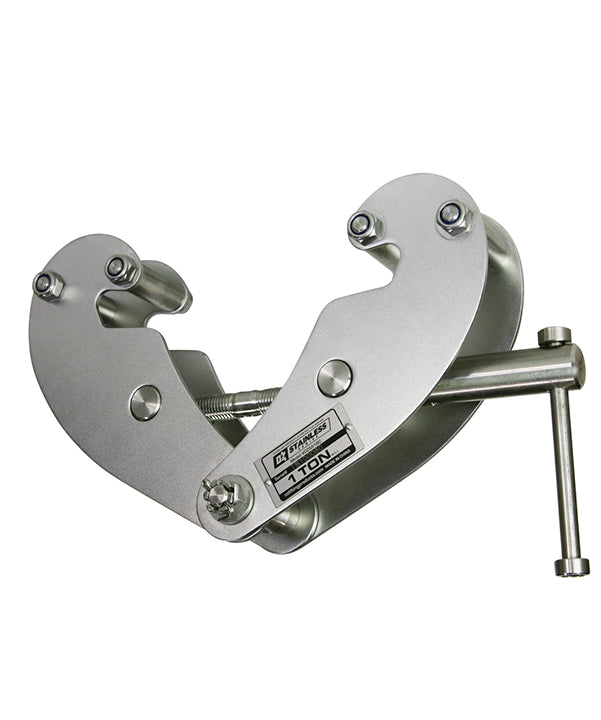

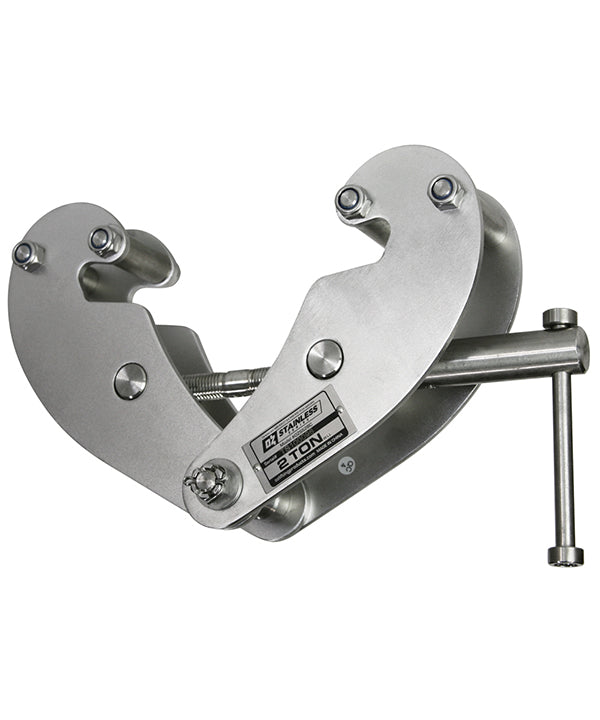

OZ Lifting Stainless Steel Beam Clamp
The Oz Lifting stainless steel beam clamp is engineered for use with manual or powered hoists to secure beams for lifting. The clamp is made from corrosion resistant stainless steel and allows for super-quick attachment to most I-beams. The clamps have all been individually tested and are available in 1 ton and 2 ton lifting capacities.
FEATURES
- Type 304 stainless steel construction for corrosion resistance
- Super-quick adjustment to most I-Beams
- Stainless steel ID tag
- Individual test certificate and serial number
Standards – CE, AS1418.2, ASME B30.16
(for use with manual or powered hoists)
SPECIFICATIONS
| OZSS1BC | OZSS2BC | ||
| Safe working load (lbs) | 2,000 | 4,000 | |
| A | 2.95-9.05 | 2.95-9.05 | |
| B | 12.2 max. | 12.2 max. | |
| C | 2.6 | 3 | |
| Dimensions (in) | D | .94 | .94 |
| E | 7.68 | 7.68 | |
| F | 5.12-6.57 | 5.12-6.57 | |
| G | 1.57 | 1.57 | |
| H | .78 | .9 | |
| Net Weight (lbs) | 9 | 11 |
*Dimensions are for reference only and subject to change without notice.
Reduction in Working Load Limits when side loads are applied
| Angle from Vertical | 0° | 0-15° | 15-30° | 30-45° |
| Reduction Factor | none | 20% | 35% | 50% |
