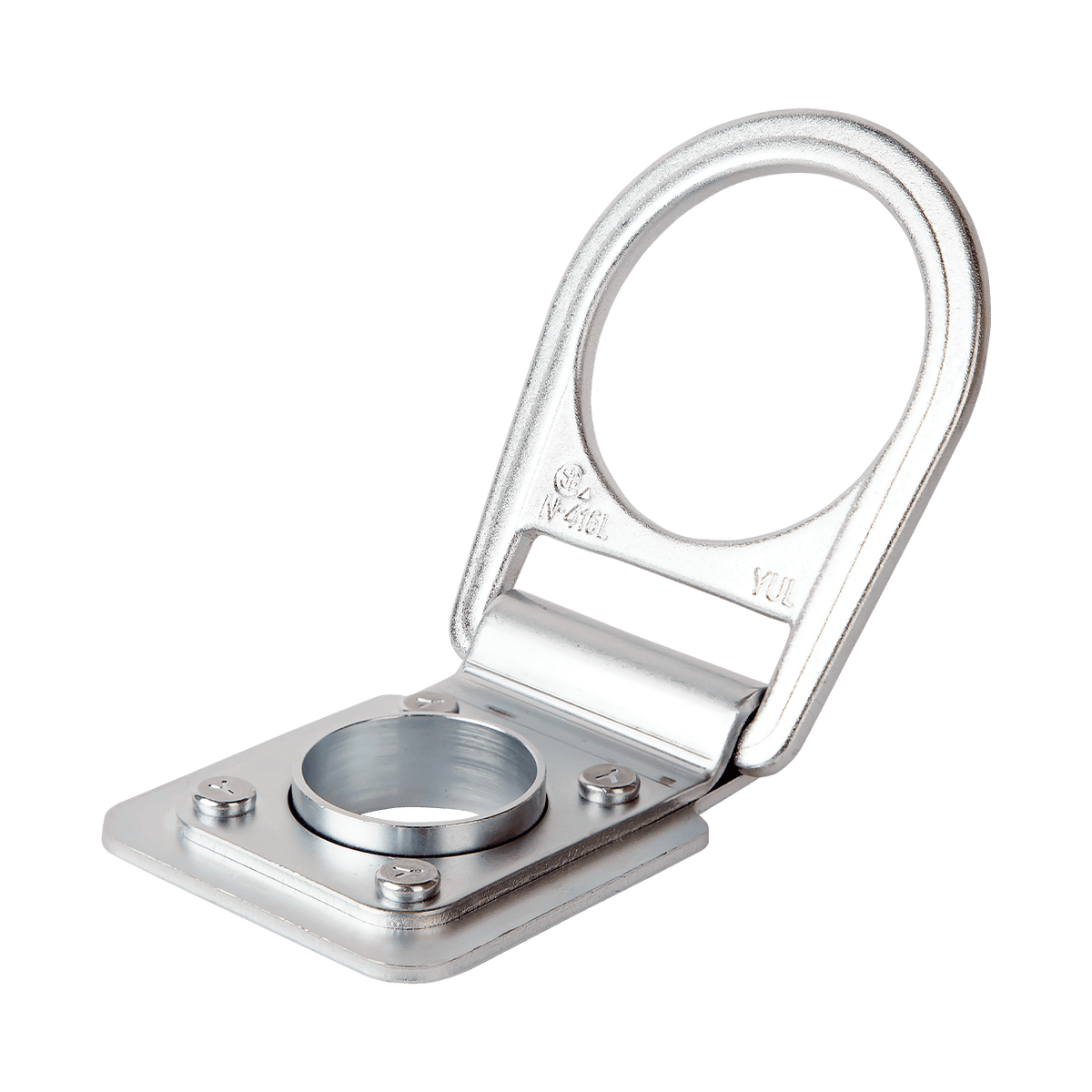

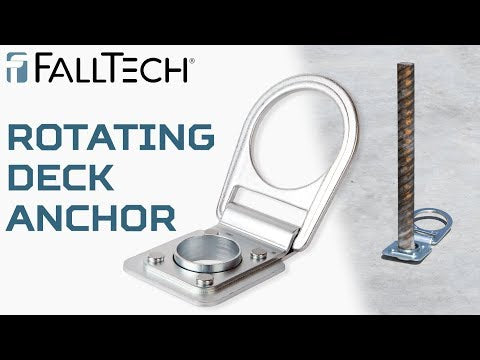

Rotating Deck Anchor for Rebar Attachment
Product No. 7452AC
Regular price
$109.50
$109.50
Pay in full or split into interest-free installments with Shop Pay.
Shipping calculator
Please enter correct zip code
Payment methods
Product details
Rotating Deck Anchor for Rebar Attachment
FEATURES
- Features alloy steel anchoring plate with alloy steel connecting D-ring
- Precision-cut bushing provides 360° D-ring rotation.
- For temporary use on exposed #10 rebar and 1-1/8" threaded rod
- Anchor requires user-supplied rebar wing nut or hex nut for installation
- Features reusable anchoring plate and D-ring
- Complies with ANSI Z359.18-2017
MATERIAL SPECIFICATIONS
Anchoring Plate: Plated alloy steel
D-ring: Plated alloy steel; 5,000 lb min. static strength
PERFORMANCE SPECIFICATIONS
Static Strength: 5,000 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 425 lb max.
DOWNLOADS
COMPLIANT WITH:
ANSI Z359.18-2017 OSHA 1926.502 and 1910.66
