CMC Enforcer Load Cell
$1,068.67
CMC Enforcer Load Cell
$1,068.67
- Force Measurement up to 20 kN: Monitors inline rope system forces in kN, lbf, and kg.
- Bluetooth & iOS App Compatible: Enables remote monitoring and high-resolution drop test logging (app sold separately).
- UL Classified to NFPA General Use: The only load cell with this classification, rated to 36 kN (8,093 lbf) MBS.
- Swivel Attachment Points: Reduces torsional and off-axis forces; weighs 397 g (14 oz).
Often Bought Together
Select items you want to add together
Please enter correct zip code
CMC Enforcer Load Cell

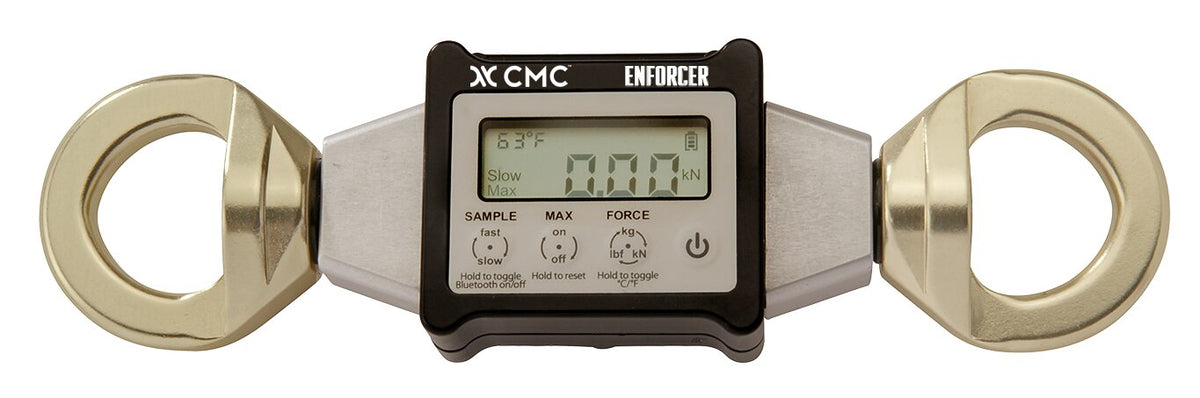

The CMC Enforcer Load Cell measures inline rope system forces up to 20 kN, giving rescue and rigging teams real-time force data during operations, training, and drop testing. It is the only load cell UL Classified to NFPA General Use.
Bluetooth connectivity and an optional iOS app extend the Enforcer beyond a standard readout, adding remote monitoring and high-resolution data logging for teams that need to document system forces.

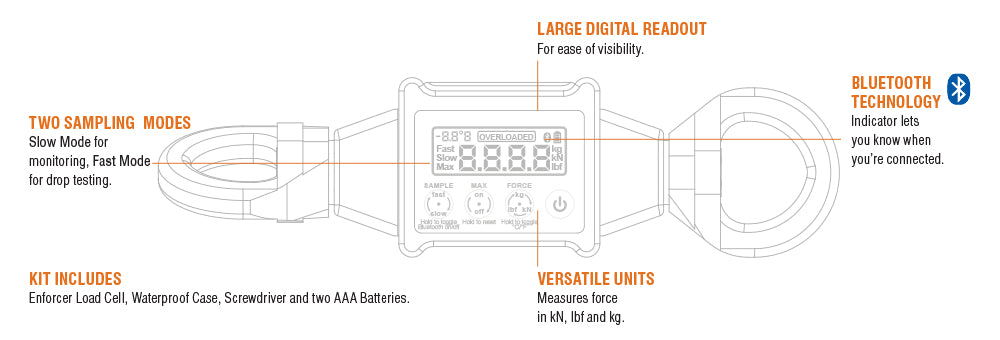

Key Features and Highlights
- Inline force measurement: Measures rope system forces up to 20 kN in kN, lbf, and kg.
- Two sampling modes: Slow mode for ongoing monitoring and fast mode for high-resolution drop testing.
- Swivel attachment points: Reduce potentially dangerous torsional and off-axis forces during use.
- Bluetooth connectivity: Pairs with the optional Enforcer App for iOS to view live data remotely.
- UL Classified to NFPA General Use: The only load cell with this classification, on the CMC Enforcer Load Cell model.
- Lightweight aluminum construction: Compact, portable design built for in-line use in rope rigging systems.
Why Choose This Product?

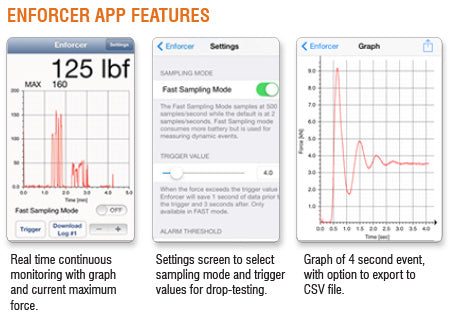

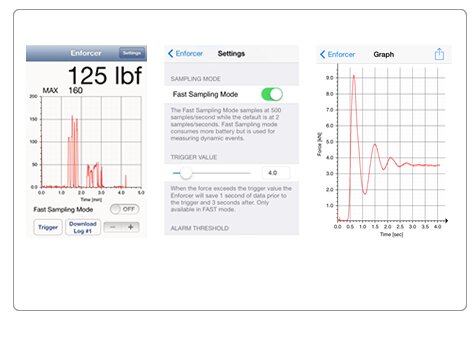

The Enforcer gives teams a General Use rated way to monitor and record system forces without adding significant weight or bulk to a rigging system. The optional app adds remote monitoring at up to 500 samples per second and lets users graph or export recorded data for further analysis.
Who Is This Product For?
Ideal for: Rope rescue and rigging teams that need to monitor, log, or drop test system forces in the field or during training.
Important: The Enforcer App is sold separately through the App Store and requires iOS 7.0 or later on a compatible iPhone, iPad, or iPod touch.
Compatibility and Applications
The Enforcer Load Cell is used in-line within rope rigging systems for monitoring and drop testing. The optional Enforcer App for iOS requires iOS 7.0 or later and is compatible with iPhone 4S through iPhone 6 Plus, several iPad Wi-Fi and Wi-Fi + Cellular models, and iPod touch, with the app optimized for iPhone 5.
Materials and Construction
Built from lightweight aluminum in black and sand, the Enforcer measures 203 x 51 x 38 mm (8 x 2 x 1.5 in) and weighs 397 g (14 oz), with an MBS of 36 kN (8,093 lbf).
