CMC Arizona Vortex Kit
$6,270.93
CMC Arizona Vortex Kit
$6,270.93
- Complete AHD Kit: Configures as a tripod, bipod, monopod, A-frame, or gin pole for rescue and access.
- Full Component Set: Includes a 2-piece head set, 3 inner legs, 7 outer legs, Flat and Raptor feet, and a Vortex Bag System.
- High Strength Rating: Rated to 36 kN (8,093 lbf) MBS, certified to EN 795 Type B and CEN/TS 16415.
- System Weight: The complete kit weighs 72 lb (33 kg), NFPA General Use classified.
Often Bought Together
Select items you want to add together
Included
CMC Arizona Vortex Kit
Incl. VAT

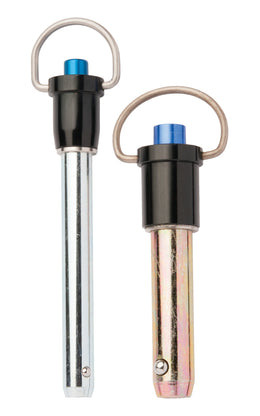

CMC Arizona Vortex Pin Replacement Set
Incl. VAT
CMC Arizona Vortex Hobble Strap
Incl. VAT
Ingrese el código postal correcto
CMC Arizona Vortex Kit
The CMC Arizona Vortex Kit is a versatile portable artificial high directional (AHD) system designed for technical rescue, rope access, confined space rescue, and high-angle operations. More than a conventional rescue tripod, the Arizona Vortex can be configured as a tripod, bipod, or monopod, as well as advanced configurations such as an easel A-frame, A-frame, sideways A-frame, and gin pole.
Designed for demanding urban, industrial, and wilderness environments, the Arizona Vortex provides riggers with a highly adjustable and portable solution for positioning rope lines above edges, entries, and other obstructions. Its precision-machined two-piece head and telescoping legs allow the system to be configured for different terrain, access requirements, and rigging applications.
Key Features and Highlights
- Portable Artificial High Directional: Provides a versatile AHD system for technical rescue, rope access, confined space, and high-angle operations.
- Multiple Rigging Configurations: Can be configured as a tripod, bipod, monopod, easel A-frame, A-frame, sideways A-frame, gin pole, and other specialized configurations.

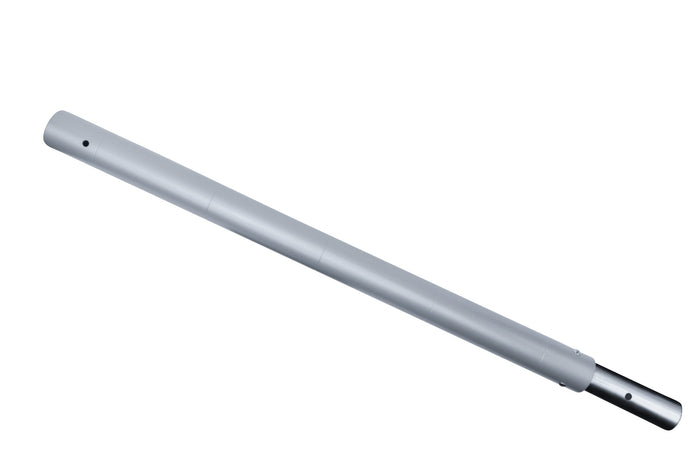

- Adjustable Telescoping Legs: Fully adjustable legs allow the Vortex head to be positioned for challenging terrain, edges, structures, and access points.

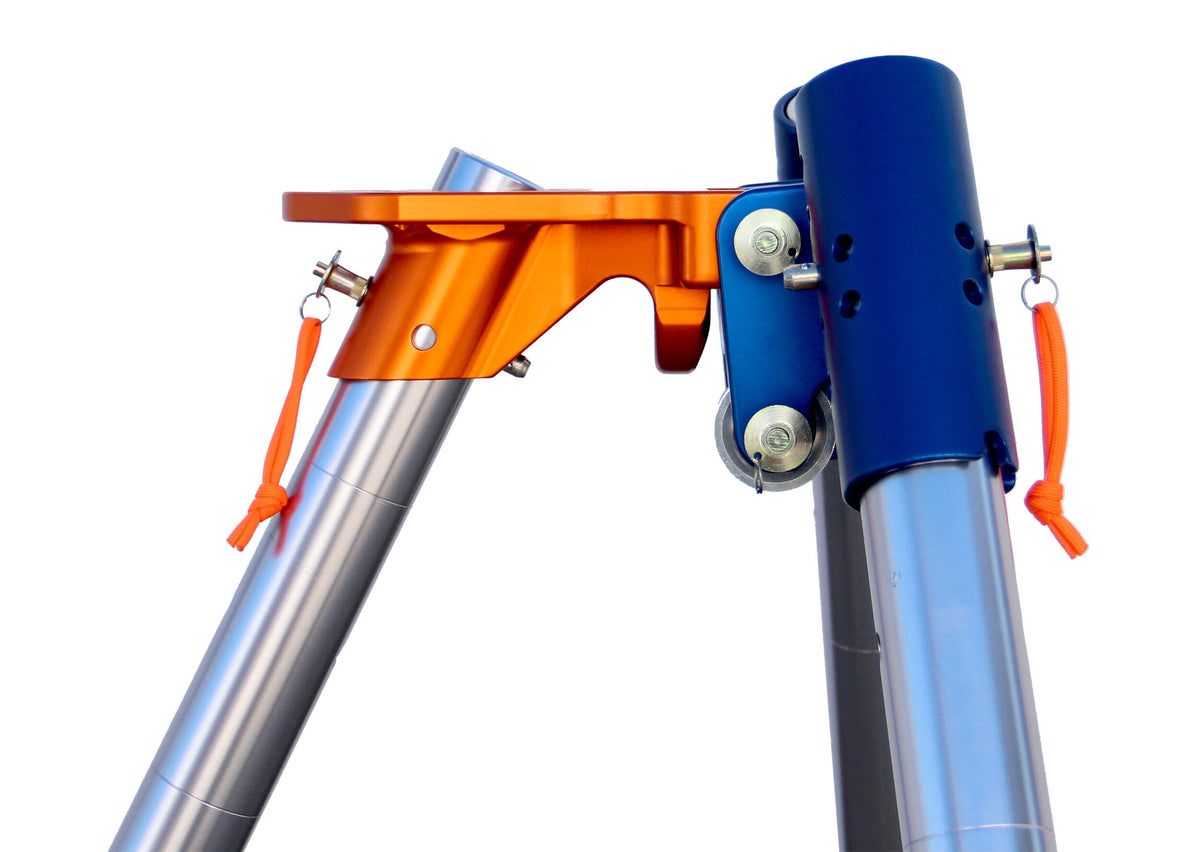

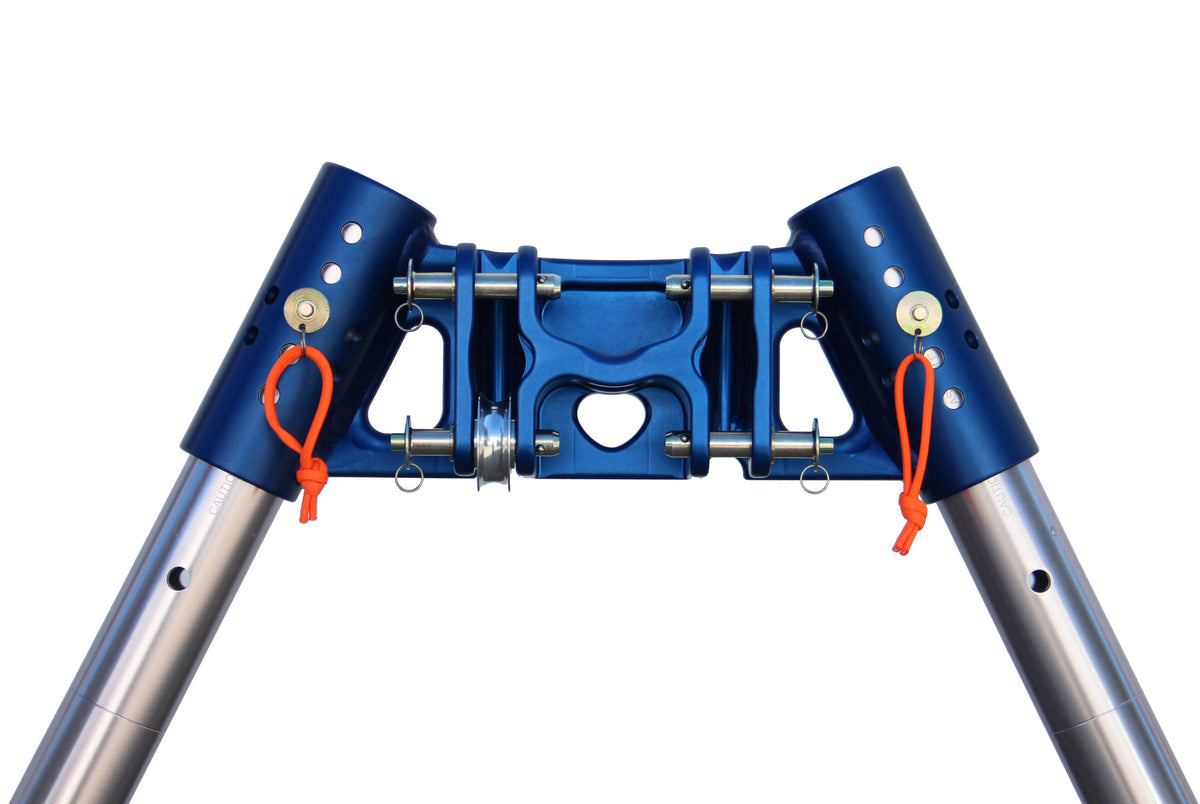

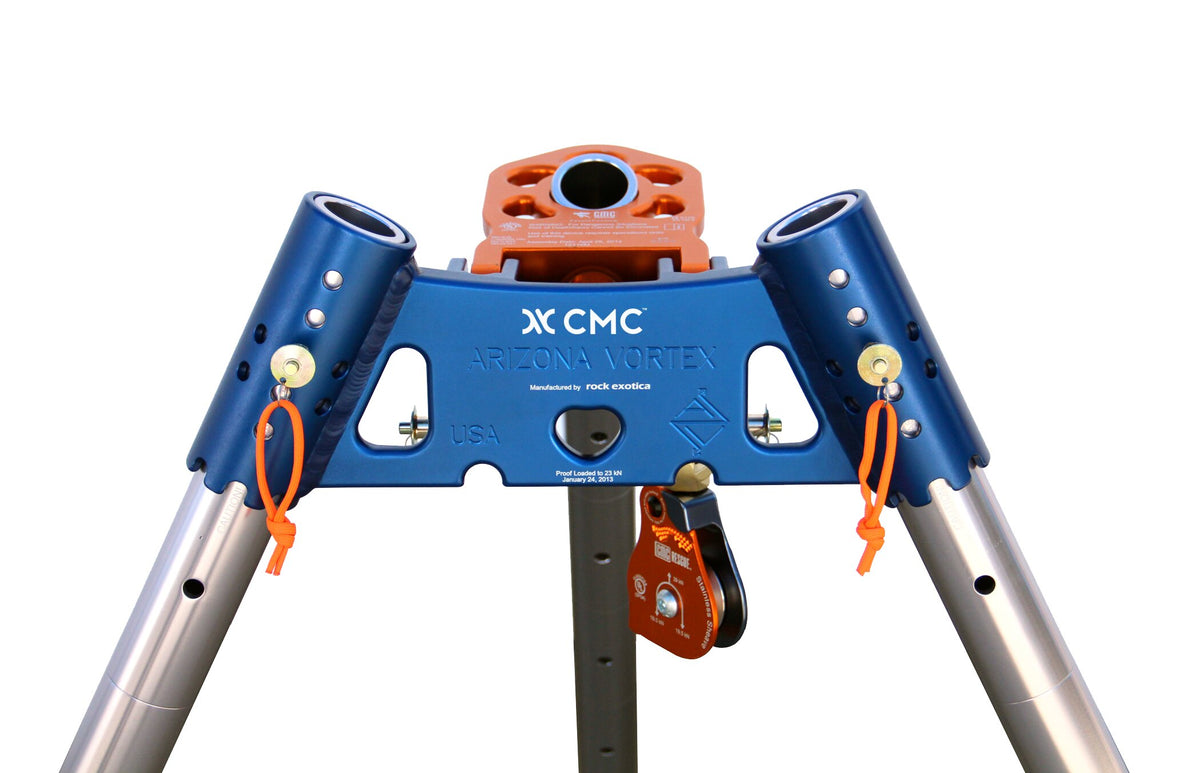

- Two-Piece Head Set: The precision-machined head provides multiple rigging options and attachment points for rope rescue and access systems.
- Edge Mitigation: Allows rope lines to be elevated above edges, entries, and obstructions, helping reduce friction and simplify edge transitions.
- Interchangeable Foot Options: Includes both Raptor and Flat feet to provide secure footing across different terrain and industrial surfaces.

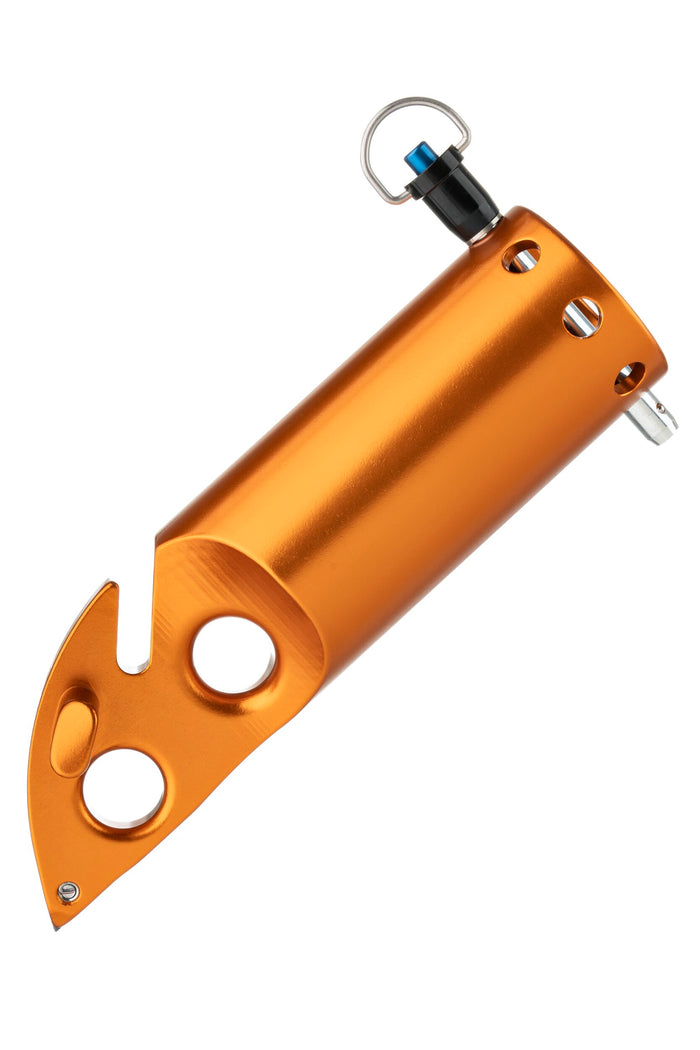

- Raptor Feet: Claw-style feet use replaceable carbide tips for grip on appropriate surfaces and can rotate to adjust their orientation.

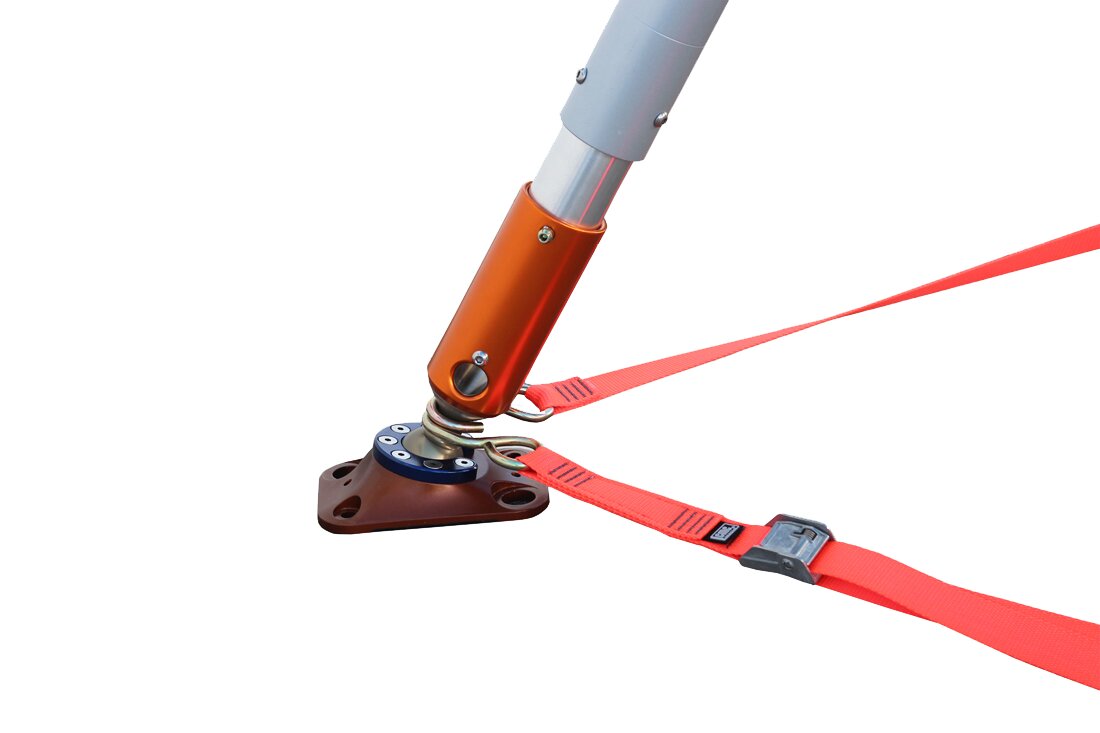

- Flat Feet: Omni-style feet feature replaceable rubber soles and articulating ball joints for improved contact on flat or uneven surfaces.

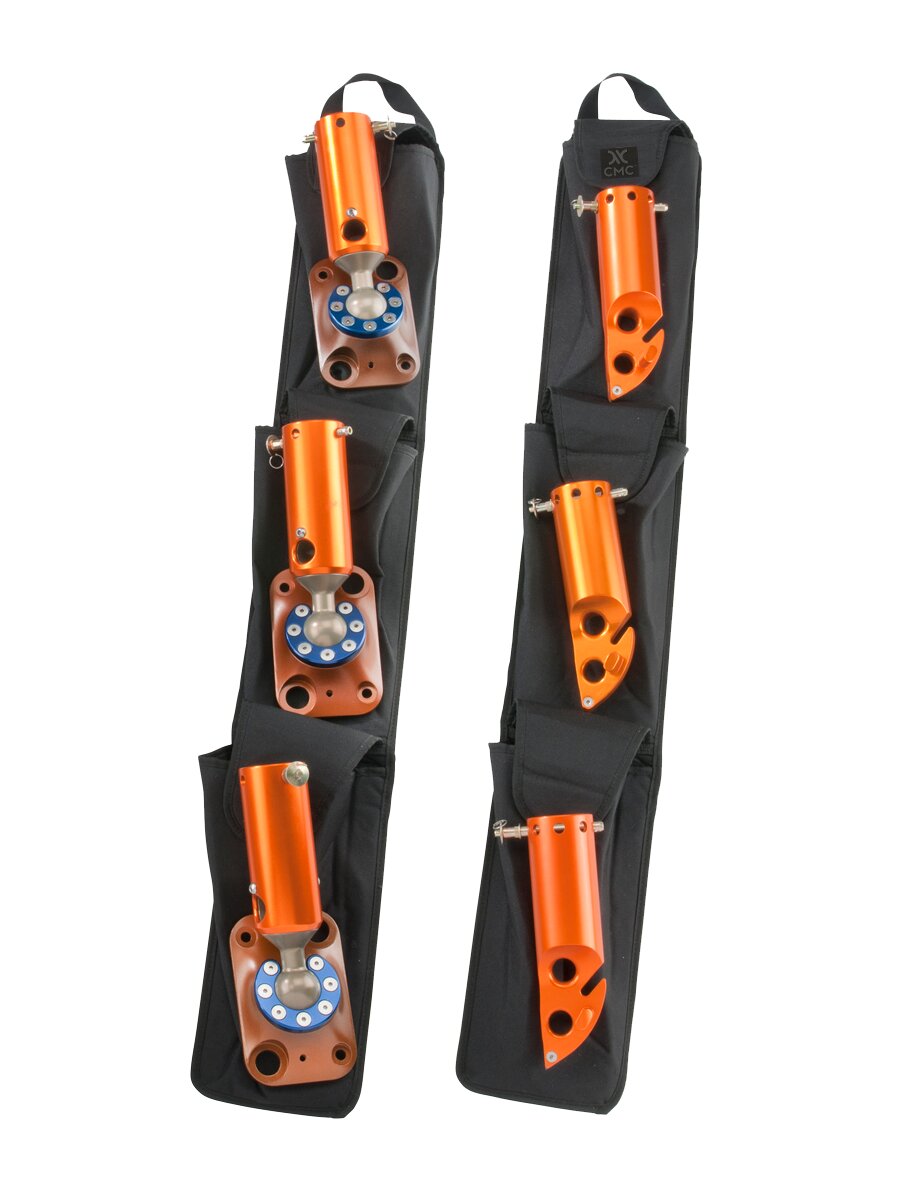

- Portable Bag System: The included Vortex Bag System divides the equipment into carry bags designed for transport into wilderness, industrial, and confined-space environments.

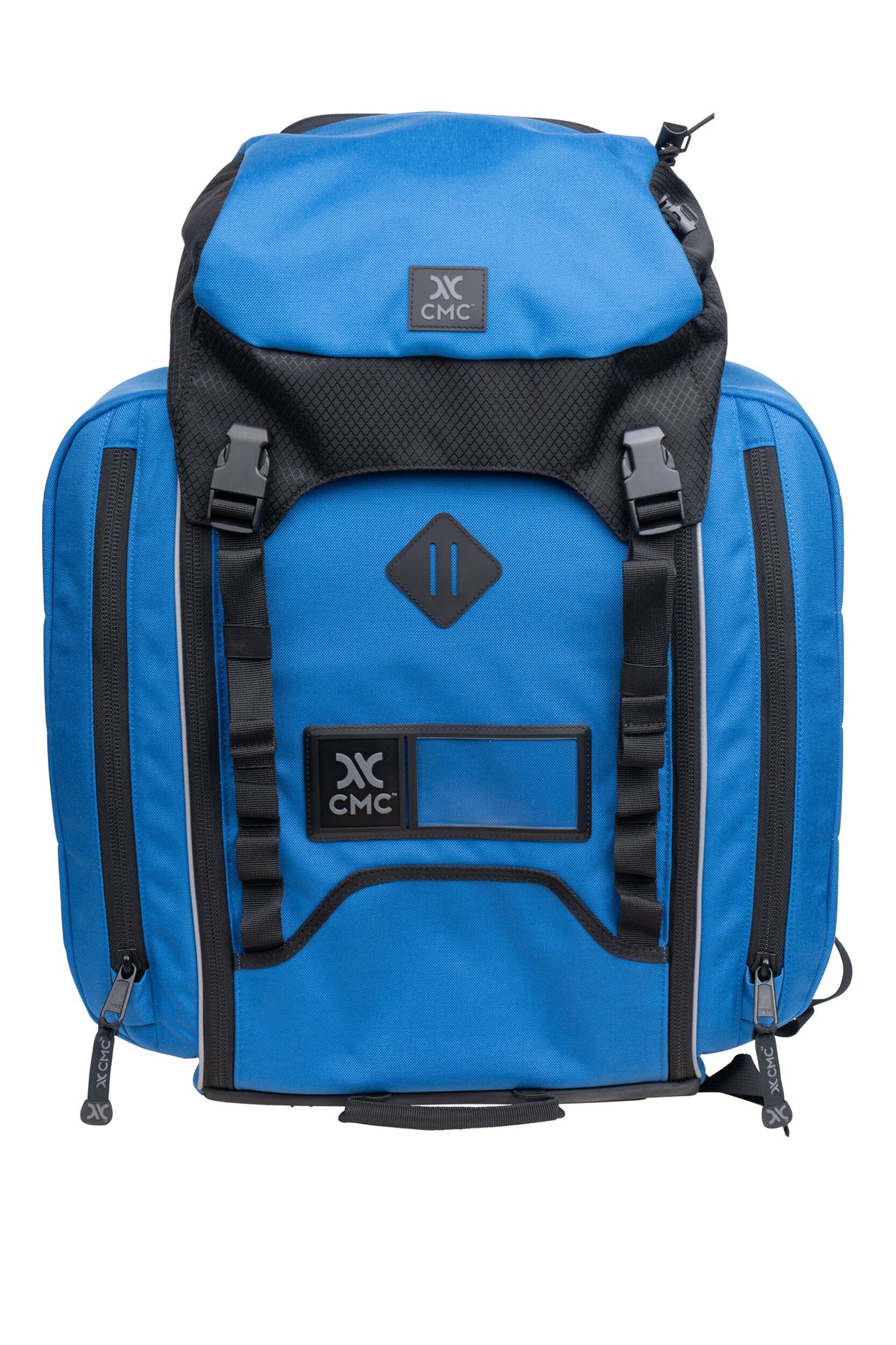

- Single-Person Transport: The RigTech Pack and redesigned leg bags allow a rope technician to transport the complete Vortex Kit more efficiently.
- Multiple Attachment Points: The Vortex head provides attachment locations for rope systems where multiple lines may be required over an edge.
- Winch Compatibility: The Vortex can be configured with compatible portable winch systems for lifting, lowering, and hauling applications.
Who Is This Product For?
Ideal for: technical rescue teams, rope access professionals, confined space rescue teams, and industrial rescue personnel who need a portable high directional system capable of adapting to complex rigging environments.

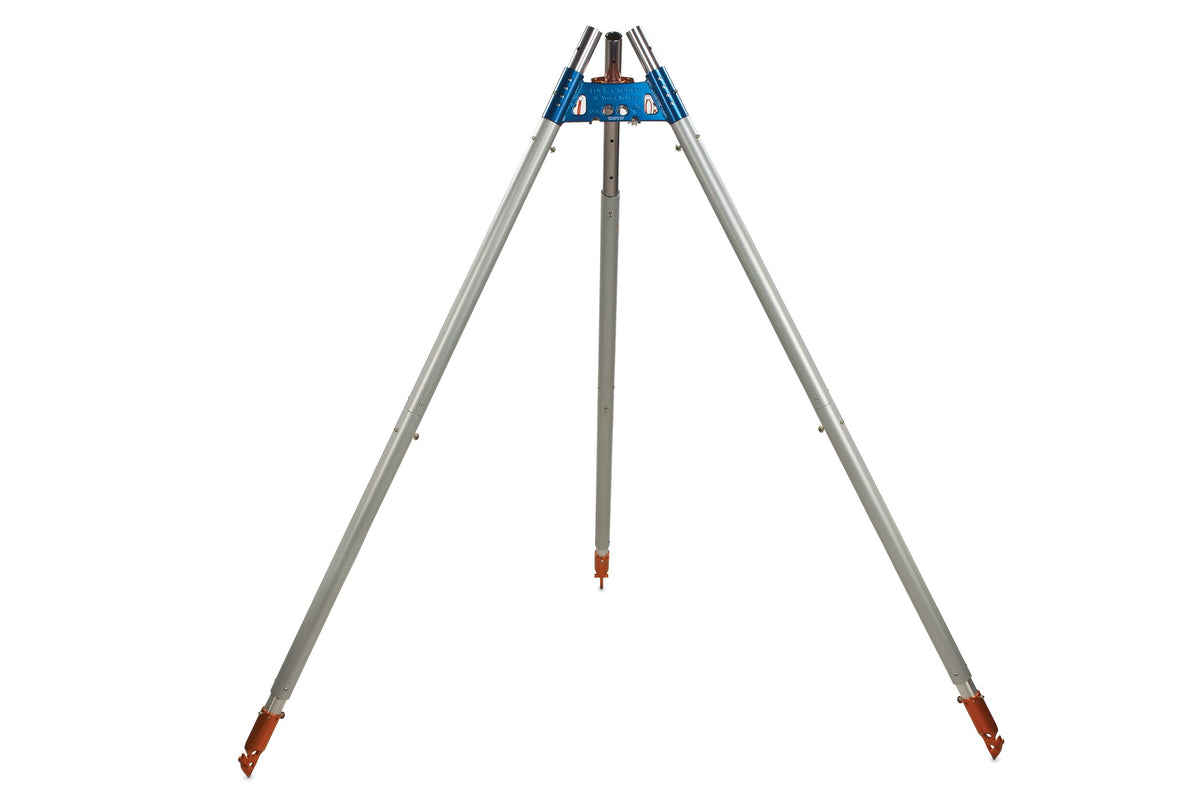

Arizona Vortex Tripod, Bipod, and Monopod
The Arizona Vortex is designed to provide multiple rigging configurations from a single portable system. Its adjustable legs and two-piece head allow the system to be assembled as a conventional tripod or adapted into bipod and monopod configurations. Advanced setups include easel A-frame, A-frame, sideways A-frame, and gin pole configurations, giving riggers greater flexibility when working around edges, structures, and confined spaces.
Designed for Confined Space and High-Angle Rescue
As an artificial high directional, the Arizona Vortex can elevate rope lines above edges, entries, and other obstructions. This makes it particularly useful for confined space rescue, high-angle rescue, rope access, mines, industrial environments, and other operations where conventional anchoring options may be limited.
The system can also serve as an anchor point in applications such as elevator shafts and confined spaces. Its adjustable geometry allows the head to be positioned closer to an edge when required, while the included foot options help provide secure contact across different terrain and surfaces.
Construction and Technical Details

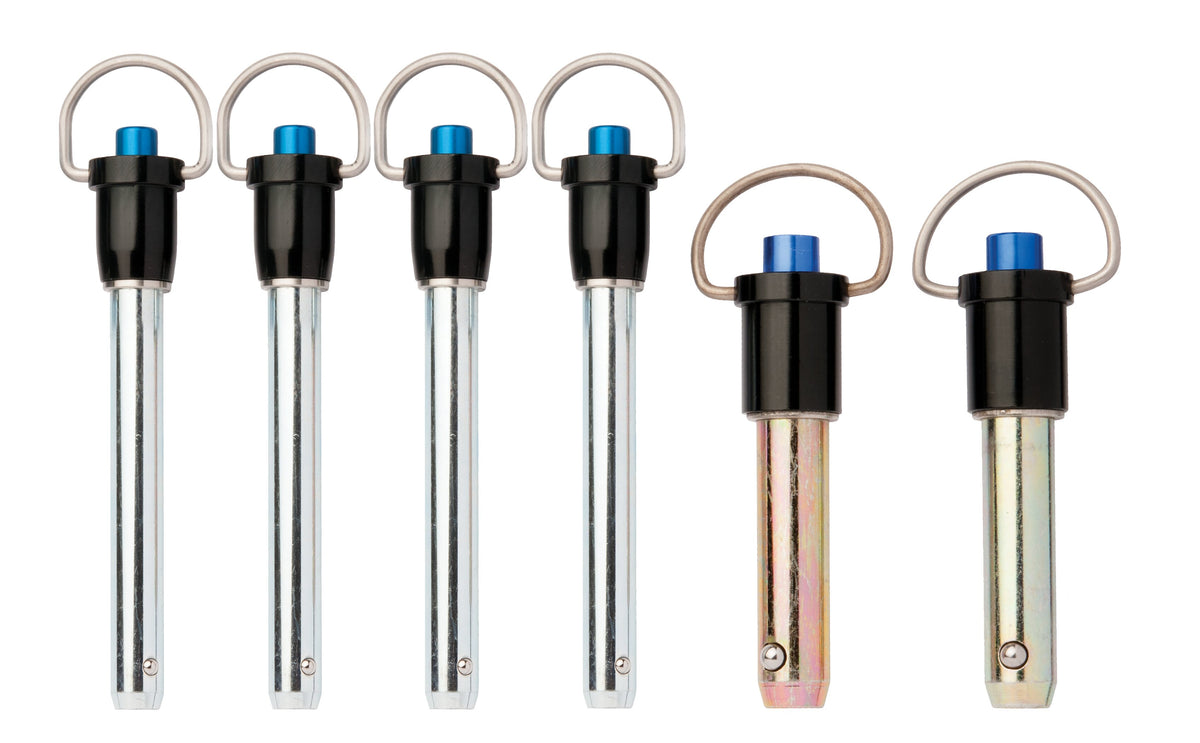

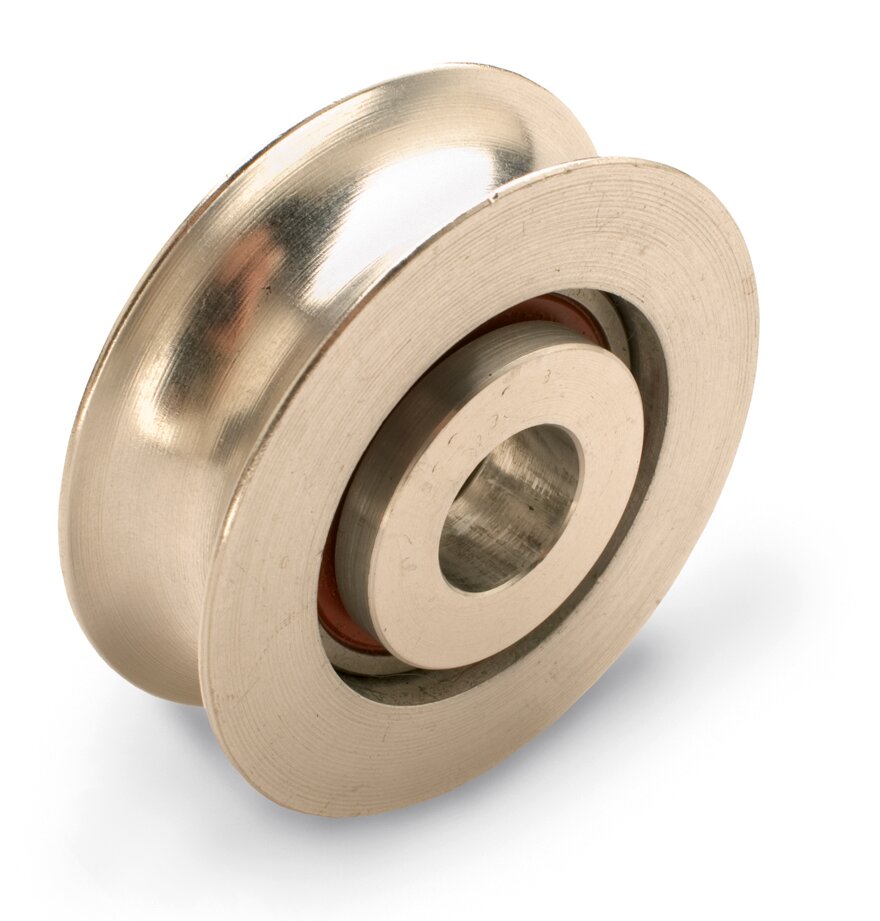

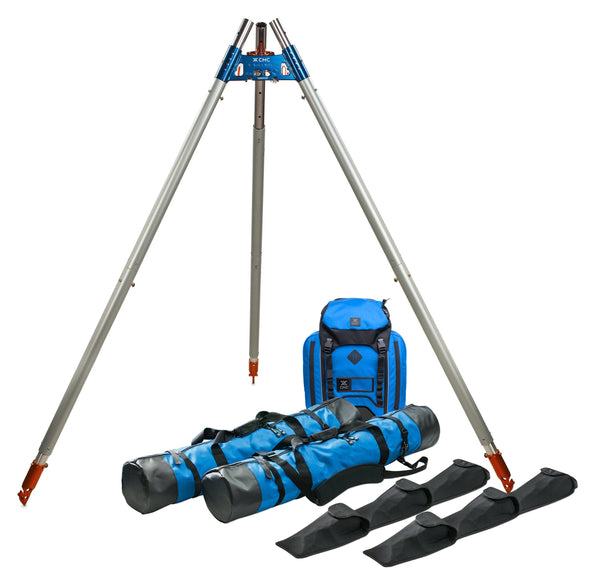

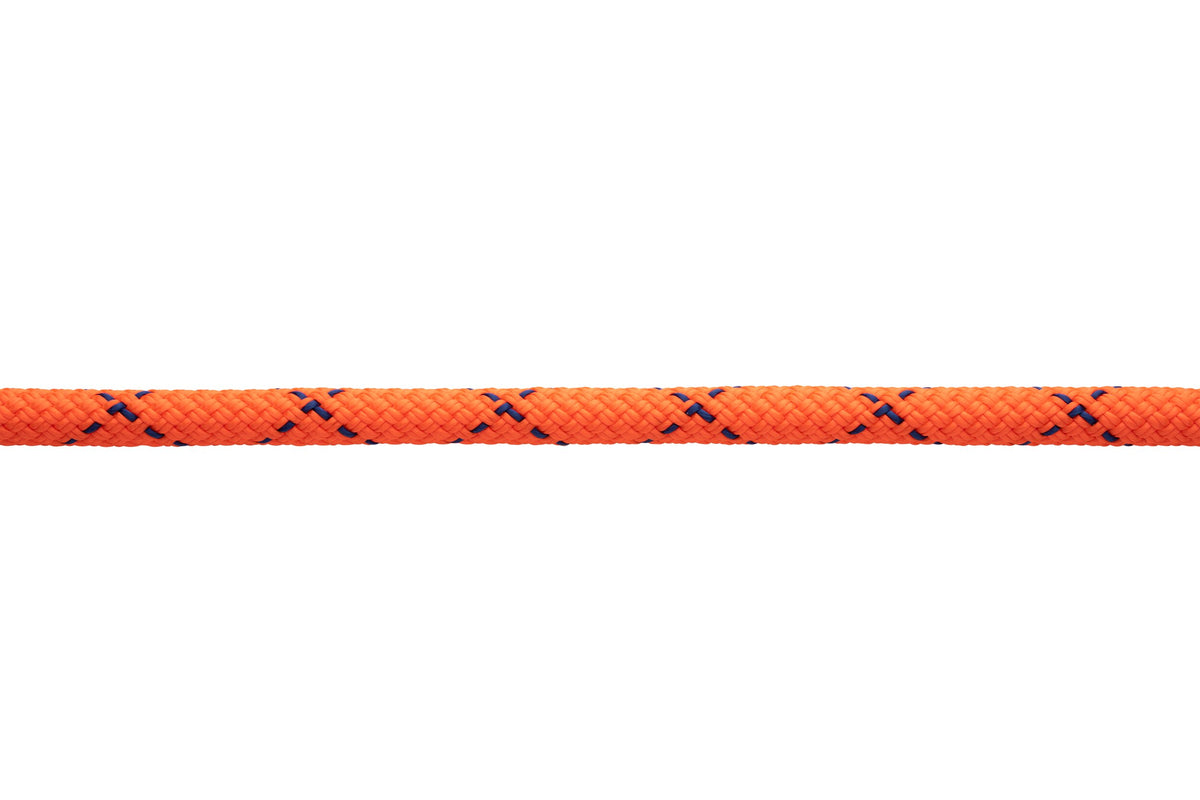

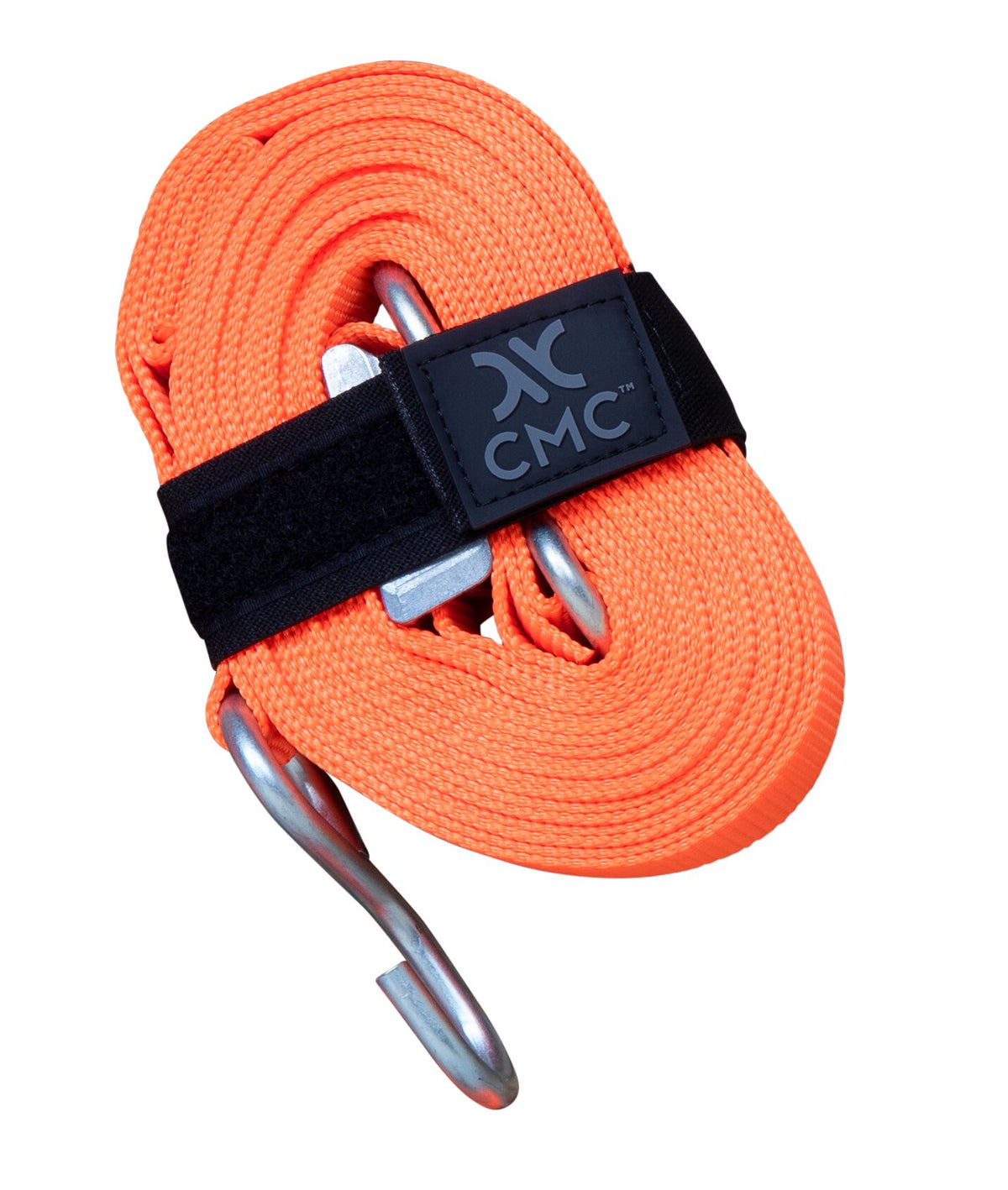

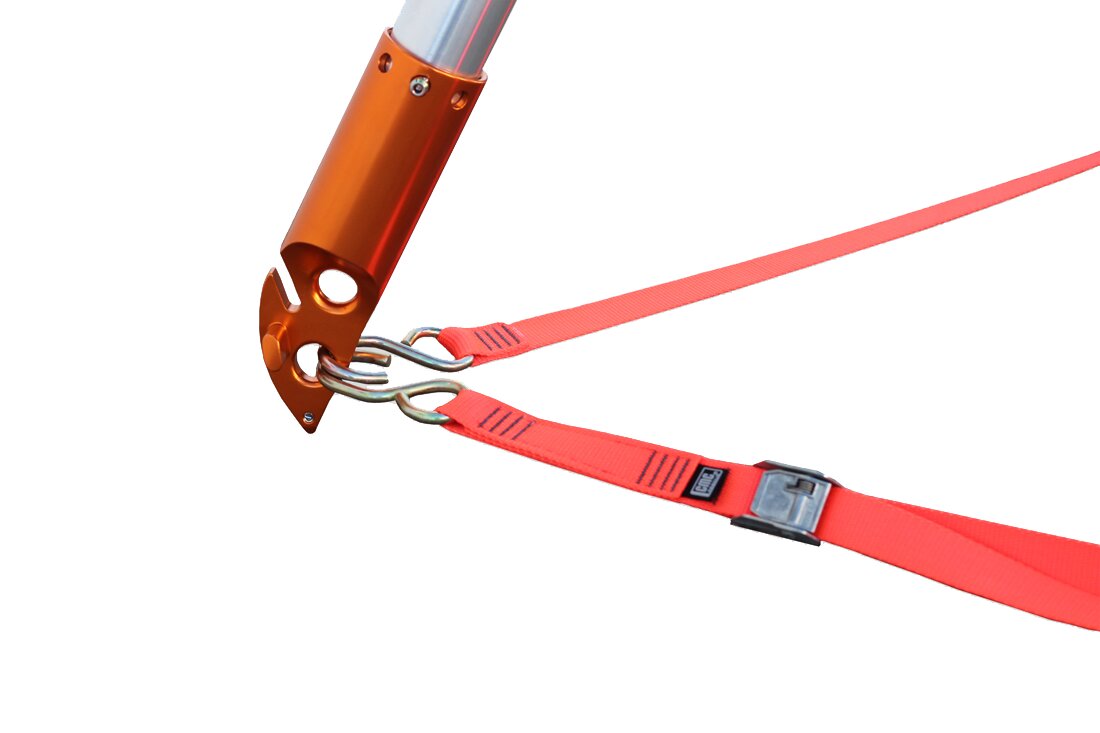

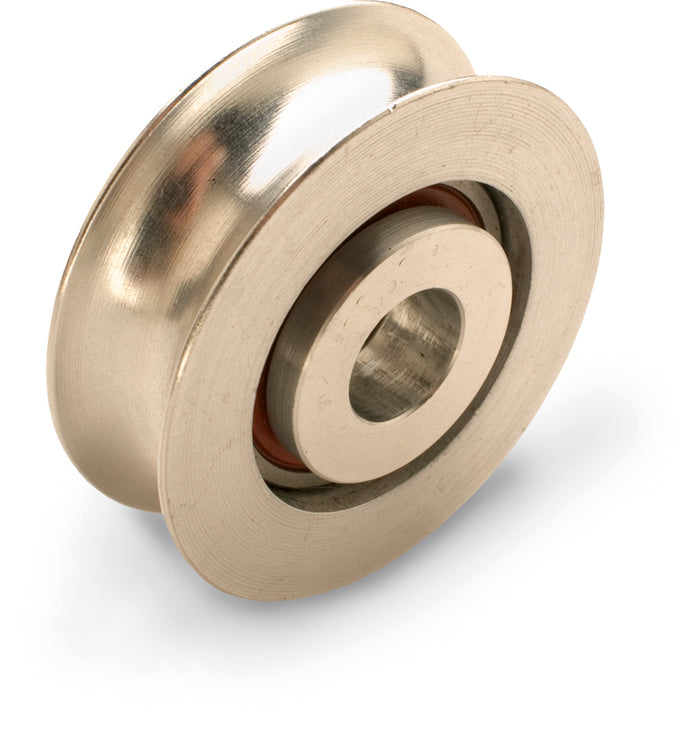

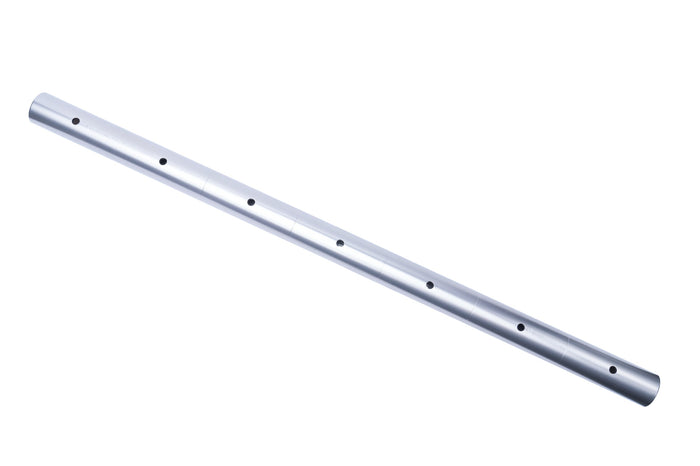

The Arizona Vortex is precision-machined from aircraft-grade T-6 aluminum and is designed for strength, portability, and repeated professional use. The complete kit includes a two-piece head set, head set pulley wheel, four head pins, three inner legs, seven outer legs, 17 leg/foot pins, three Flat feet, three Raptor feet, 21 orange pin flags, three adjustable hobble straps, 40 ft (12 m) of 8 mm tether cord, a user manual, and the Vortex Bag System.
The system has a minimum configuration height of 2.7 m (9 ft) and can reach up to 3.7 m (12 ft) with additional legs. System weight is 33 kg (72 lb) with both foot sets, while shipping weight is 43 kg (95 lb). The kit is blue, orange, and silver and is classified for NFPA General Use. It is also certified to EN 795 Type B and CEN/TS 16415.
Arizona Vortex Accessories
The Arizona Vortex can be expanded with accessories designed to increase carrying convenience and rigging versatility. The AZORP (Arizona Omni Rigging Pod) provides additional rigging options on the Vortex legs, while the Sedona Shoulder Harness provides a backpack-style carrying solution for the Vortex leg bags. Additional Vortex components, replacement legs, feet, pins, and bags are also available separately.
