OZ Lifting Wheel Base for Davit Cranes Up To 1200 lb
OZ Lifting Wheel Base for Davit Cranes Up To 1200 lb $1,420.00
  • OZ Lifting Wheel Base for Davit Cranes Up To 1200 lb

OZ Lifting Wheel Base for Davit Cranes Up To 1200 lb

OZ Lifting |
SKU: OZWB
$1,420.00
  • Fits all OZ Lifting davit cranes up to 1,200 lb. One base serves any compatible crane without model-specific purchasing.
  • Moves without disassembly. Polyurethane-tread wheels and rear swivel casters roll smoothly indoors and outdoors.
  • Locks under load. Patent-pending floor-anchor bolt kit holds position while allowing 360-degree crane rotation.
  • Industrial steel frame. Adjustable leg extensions with powder-coat finish for long-term facility use.
View Full Description Technical Data
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa

Often Bought Together

Select items you want to add together

Included
OZ Lifting Wheel Base for Davit Cranes Up To 1200 lb
Incl. VAT
+
OZ Lifting Mast Extension for Davit Crane
Incl. VAT
+
OZ Lifting Pedestal Base for Davit Crane
Incl. VAT
+
OZ Lifting Wall Mount Base for Davit Crane
Incl. VAT
Seleccione el país
Ingrese el código postal correcto
Test heading

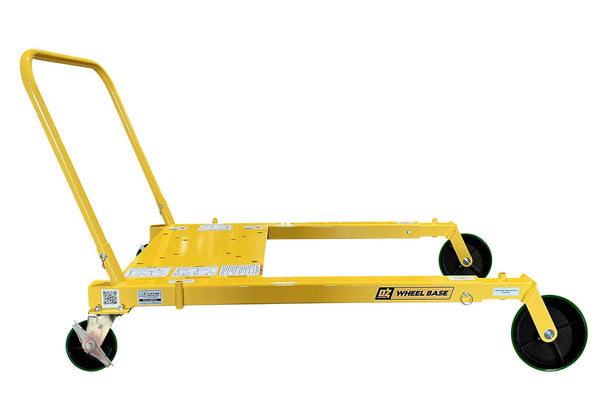

OZ Lifting Mobile Davit Crane Wheel Base for Cranes Up To 1200 lb

The OZ Lifting Wheel Base for Davit Cranes Up To 1200 lb is a heavy-duty portable base designed to bring full mobility to any OZ Lifting davit crane system rated up to 1200 lb capacity. Built from industrial-strength steel with a durable powder-coat finish, the OZWB allows a single davit crane to move freely across a facility floor without requiring permanent floor-mounted bases at every pick point.

The base features oversized polyurethane-tread wheels and rear swivel casters for smooth indoor and outdoor movement, with a rear caster lock brake for stability during lifting. When anchored using the included floor-anchor bolt kit, the patent-pending floor-anchoring system allows the davit crane to rotate 360 degrees under load. When unanchored, the crane must remain in a forward position during lifting. The frame is fully adjustable across four length positions from 56.57 inches to 77.57 inches, with a fixed width of 32.44 inches and height of 36.87 inches.

The OZWB ships without a pedestal base or locking collar. Choose this model if you already have a compatible OZ Lifting pedestal base. Forklift pockets are built in for transport. Ships on a pallet and requires assembly at point of use. Made in the USA.

Key Features

  • Compatible with all OZ Lifting davit cranes up to 1200 lb capacity
  • Patent-pending floor-anchoring system enables 360-degree crane rotation under load
  • Polyurethane-tread indoor/outdoor wheels with rear swivel casters and lock brake
  • Adjustable length from 56.57 in to 77.57 in across four positions
  • Industrial-strength steel construction, powder-coat finish, made in the USA

Pedestal base and locking collar not included. Davit crane sold separately. Browse the full OZ Lifting collection at MTN Shop.

COMPLETE YOUR SETUP

RELATED PRODUCTS

Explore compatible accessories and related products.

Frequently Asked Questions

Does the OZ Lifting Wheel Base OZWB come with a pedestal base?
The OZ Lifting Wheel Base OZWB does not include a pedestal base or locking collar. It is intended for customers who already have a compatible OZ Lifting pedestal base. If you need a complete kit with pedestal base included, OZ Lifting offers model-specific wheel base kits such as the OZWB1, OZWB2, and OZWB3.
Can the OZ Lifting Wheel Base rotate under load?
Yes, but only when anchored. The OZ Lifting Wheel Base features a patent-pending floor-anchoring system that allows the davit crane to rotate 360 degrees while under load. When the base is not anchored to the floor, the crane must remain in a forward position during all lifting operations.
Which OZ Lifting davit cranes are compatible with the OZWB Wheel Base?
The OZ Lifting OZWB Wheel Base is compatible with all OZ Lifting davit cranes rated up to 1200 lb capacity, including the Steel, Alumi-Lite, XR Series, Tele-Pro, CompOZite, and CompOZite Elite models. The pedestal base required depends on the specific crane being used.
