OZ Lifting Wheel Base for Davit Cranes OZ1200DAV

OZ Lifting Mobile Davit Crane Wheel Base with Pedestal Base for OZ1200DAV

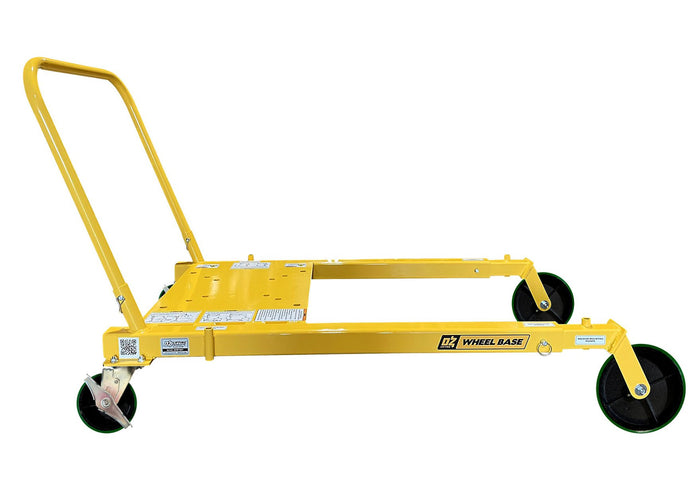

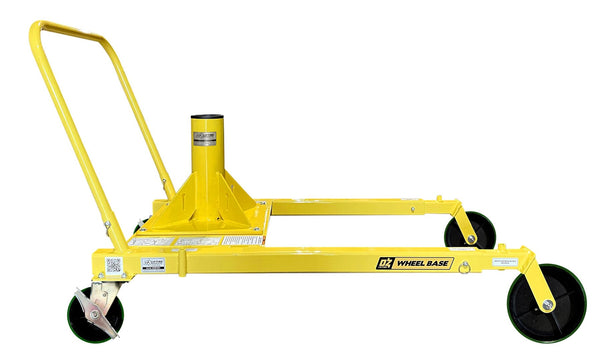

The OZ Lifting Wheel Base for Davit Cranes OZ1200DAV is a complete mobile base kit designed specifically for the OZ1200DAV CompOZite® davit crane. Built from industrial-strength steel with a durable powder-coat finish, the OZWB1 comes with the OZPED1 pedestal base and a Davit Crane Locking Collar included, making it a ready-to-use solution for facilities that need to move a davit crane between multiple floor locations without permanent base installations.

The base features oversized polyurethane-tread wheels and rear swivel casters for smooth movement indoors and outdoors, with a rear caster lock brake for stability during lifting operations. When anchored using the included floor-anchor bolt kit (1/2-13 grade 5 coarse thread bolts), the floor-anchoring system allows the davit crane to rotate 360 degrees under load. When unanchored, the crane must remain in a forward position during lifting. The frame adjusts across four length positions from 56.57 inches to 77.57 inches, with a fixed width of 32.44 inches and height of 36.87 inches.

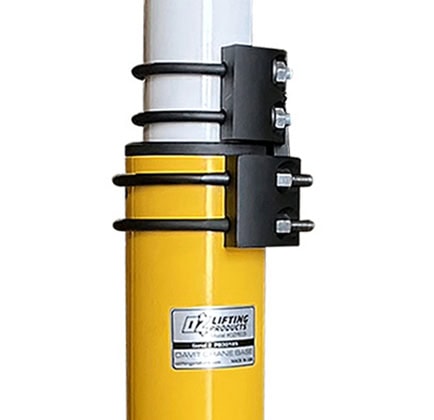

Includes a Davit Crane Locking Collar to prevent excessive boom rotation, and the OZPED1 pedestal base. Forklift pockets are built in for transport. Ships on a pallet and requires assembly at point of use. Made in the USA.

Key Features

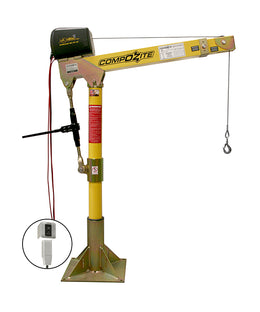

• Designed for use with the OZ1200DAV CompOZite® davit crane
• Includes OZPED1 pedestal base and Davit Crane Locking Collar
• Floor-anchoring system enables 360-degree crane rotation under load
• Polyurethane-tread indoor/outdoor wheels with rear swivel casters and lock brake

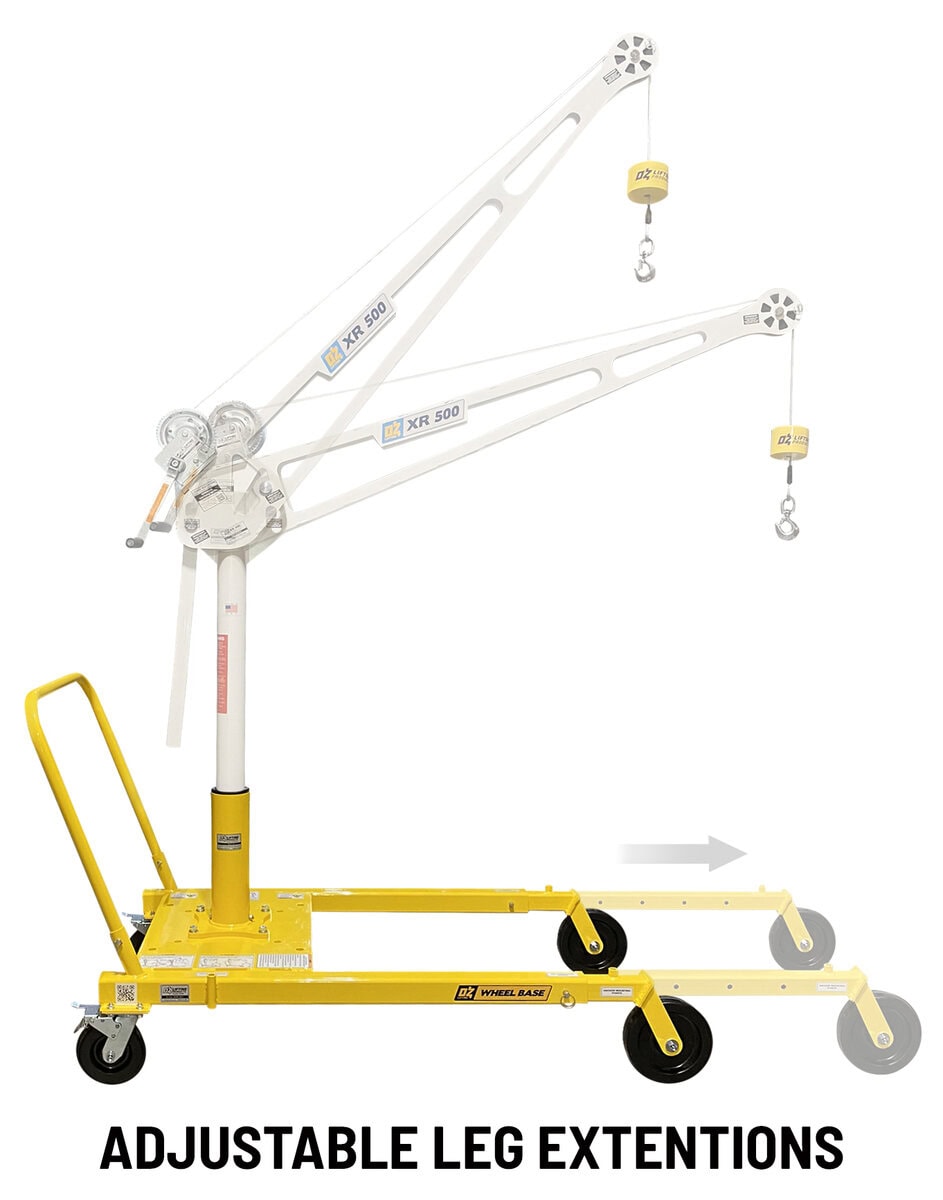

• Adjustable length from 56.57 in to 77.57 in across four positions
• Industrial-strength steel construction, powder-coat finish, made in the USA

Davit crane sold separately. Browse the full OZ Lifting collection at MTN Shop.
