OZ Lifting Wheel Base for Davit Cranes for OZ1000DAV and OZCF1200DAV
OZ Lifting Wheel Base for Davit Cranes for OZ1000DAV and OZCF1200DAV $1,997.33
  • OZ Lifting Wheel Base for Davit Cranes

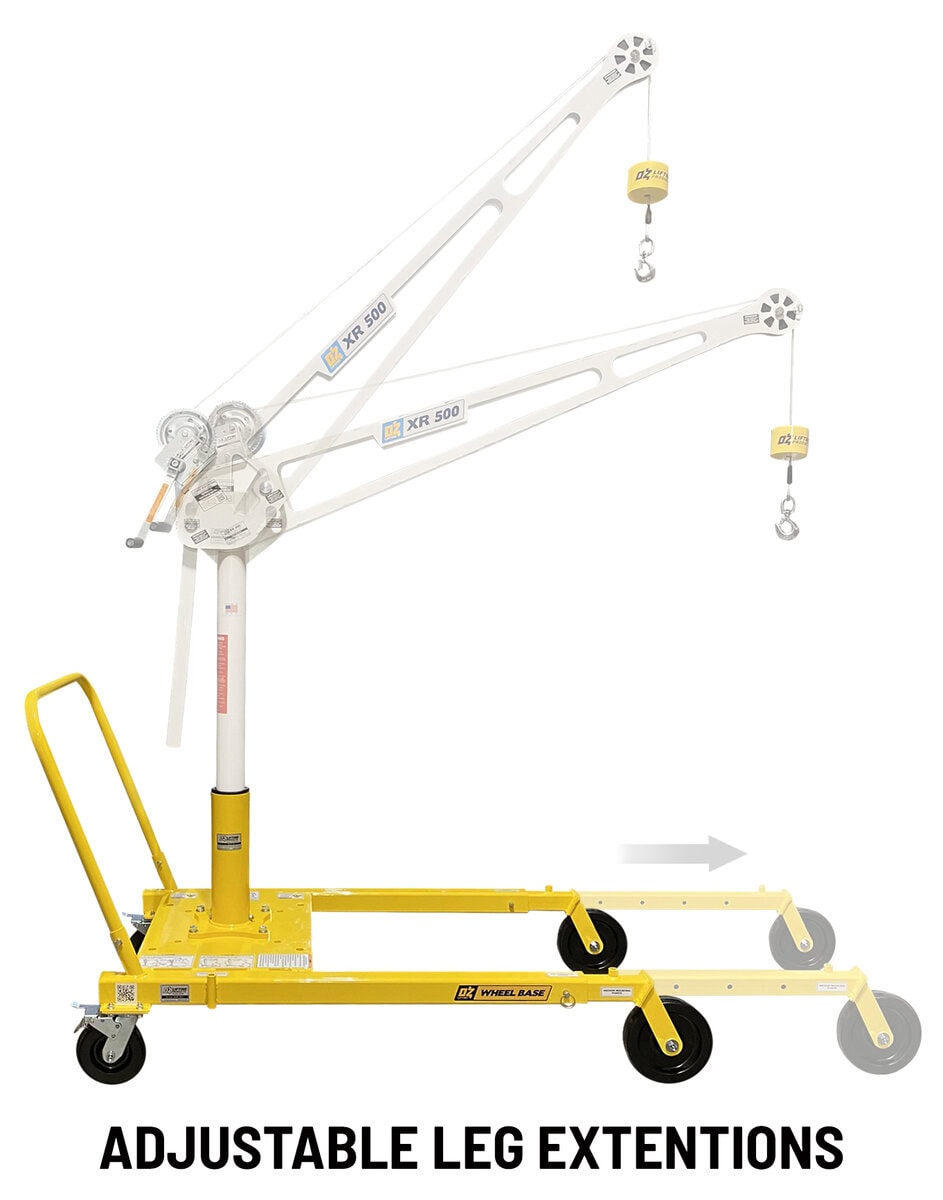

  • OZ Lifting Wheel Base for Davit Cranes eg extentions - imagen 2

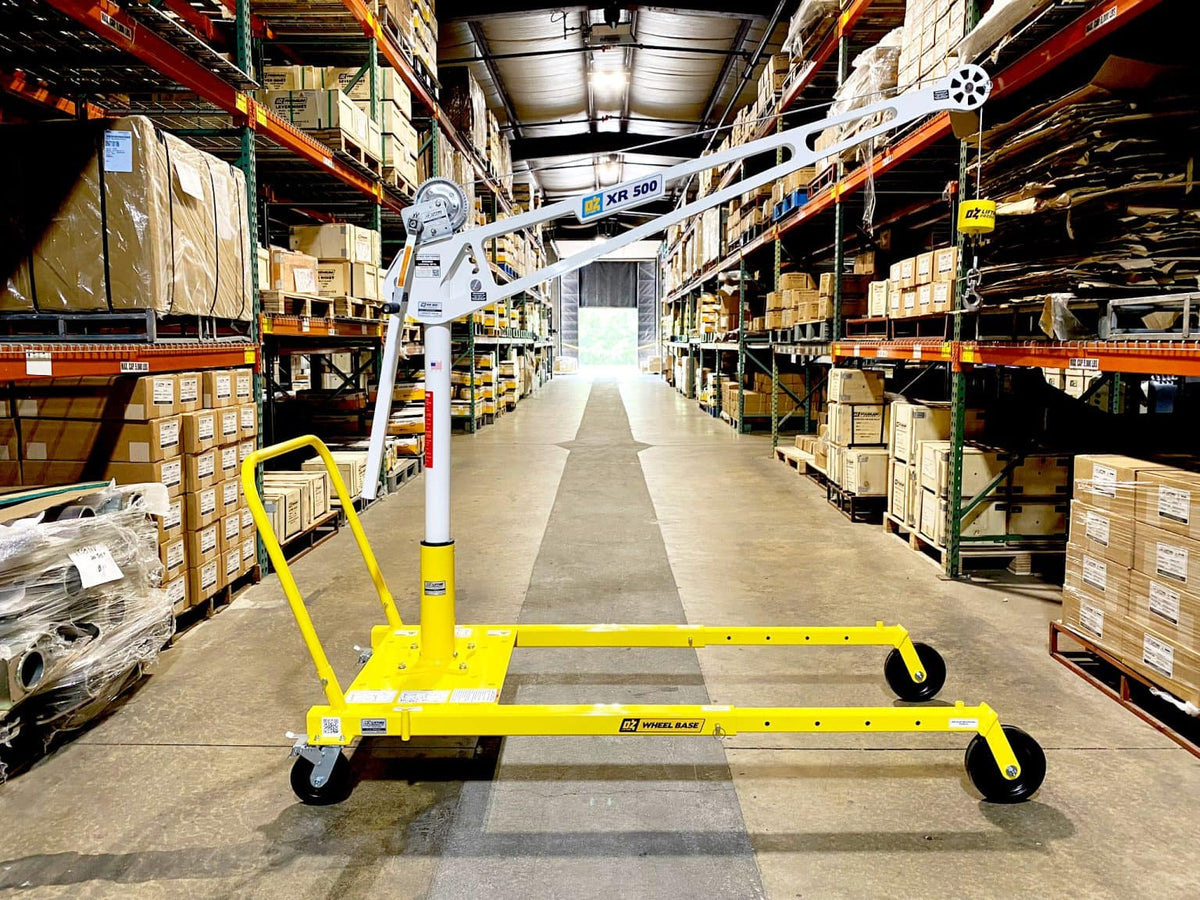

  • An OZ Lifting Products XR 500 Davit Crane with a white mast and boom, mounted on a yellow portable mobile wheel base inside a warehouse aisle. - imagen 3

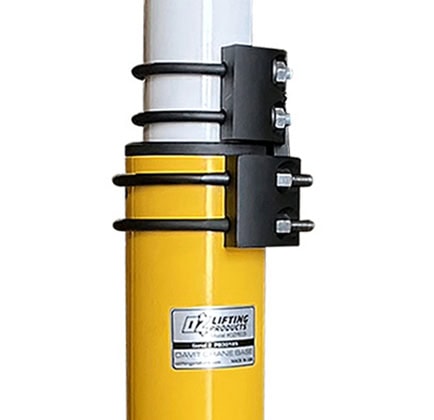

  • A heavy-duty black Davit crane locking collar with U-bolts installed on a yellow OZ Lifting Products crane base against a white background. - imagen 4

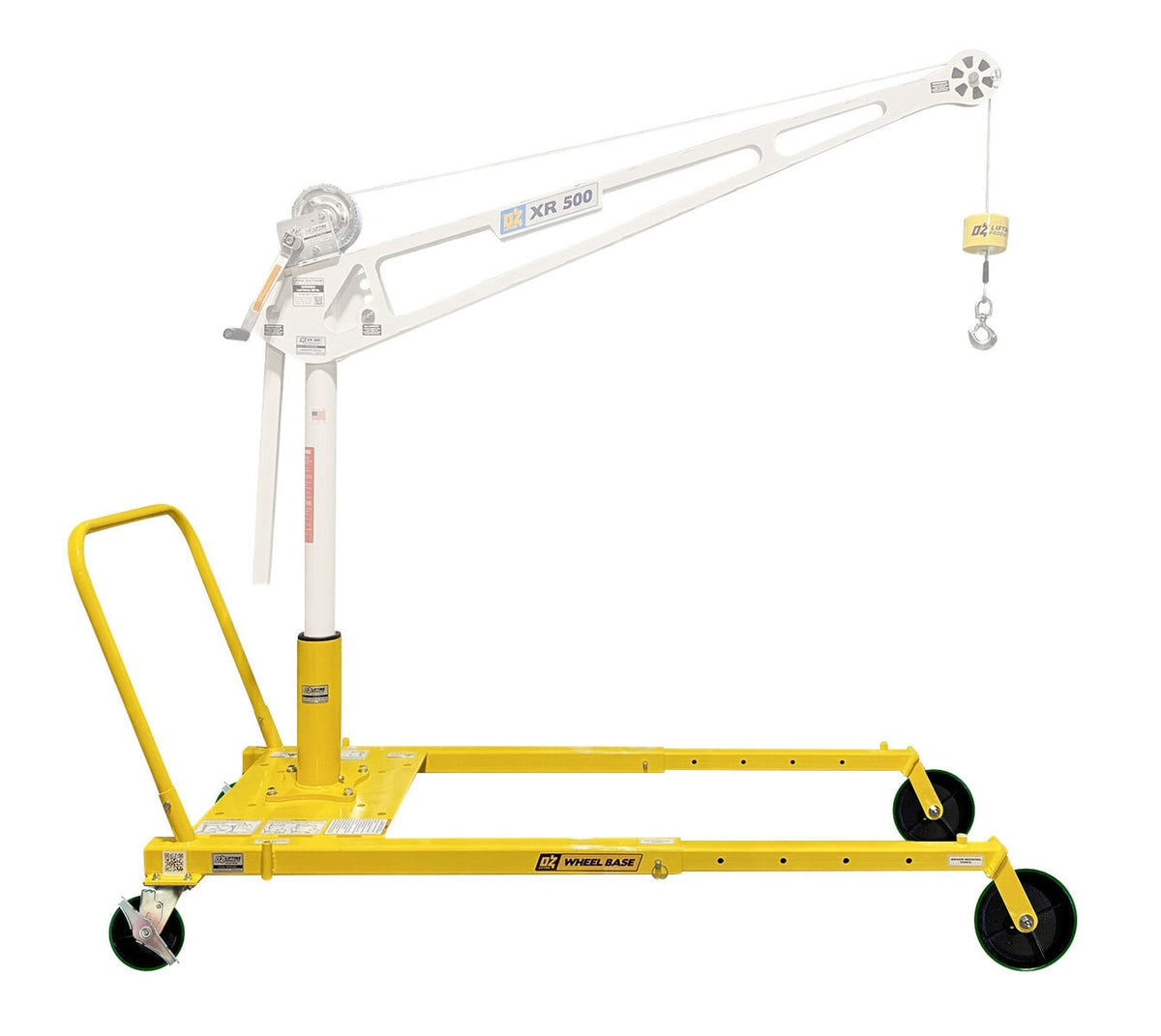

  • White OZ Lifting Products XR 500 Davit Crane featuring a pedestal-style mount on a yellow adjustable mobile wheel base, isolated on a white background. - imagen 5

OZ Lifting Wheel Base for Davit Cranes for OZ1000DAV and OZCF1200DAV

OZ Lifting |
SKU: OZWB2
$1,997.33
  • Fits Steel 1000 and CompOZite Elite davit cranes. Includes OZPED2 pedestal base and locking collar as a complete kit.
  • Moves without disassembly. Polyurethane-tread wheels and rear swivel casters for smooth indoor and outdoor repositioning.
  • Locks under load. Patent-pending floor-anchor system with 1/2-13 grade 5 bolts, allows 360-degree rotation under load.
  • Adjustable footprint. Industrial steel frame with powder-coat finish and adjustable leg extensions.
View Full Description Technical Data
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa

Often Bought Together

Select items you want to add together

Included
OZ Lifting Wheel Base for Davit Cranes for OZ1000DAV and OZCF1200DAV
Incl. VAT
+
Grúas pescante de acero de elevación OZ
Incl. VAT
+
Grúa pescante OZ Lifting Elite fibra de carbono
Incl. VAT
Seleccione el país
Ingrese el código postal correcto
Test heading

OZ Lifting Mobile Davit Crane Wheel Base with Pedestal Base for OZ1000DAV and OZCF1200DAV

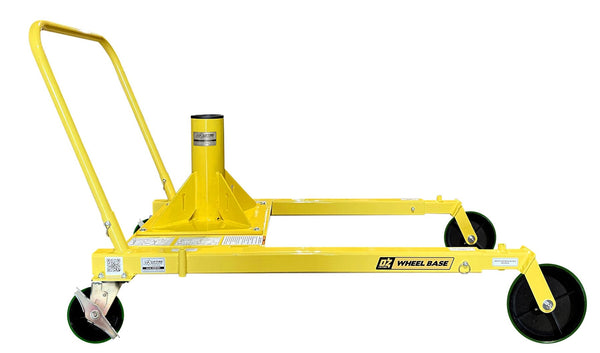

The OZ Lifting Wheel Base for Davit Cranes OZ1000DAV and OZCF1200DAV is a complete mobile base kit for the Steel 1000 and CompOZite Elite davit cranes. Built from industrial-strength steel with a powder-coat finish, the OZWB2 includes the OZPED2 pedestal base and Davit Crane Locking Collar, allowing a single crane to move between floor lifting points across a facility without permanent base installations.

The base features polyurethane-tread wheels and rear swivel casters for smooth indoor and outdoor movement, with a rear caster lock brake for stability. When anchored using the included floor-anchor bolt kit (1/2-13 grade 5 coarse thread bolts), the patent-pending floor-anchoring system allows full 360-degree crane rotation under load. When unanchored, the crane must remain in a forward position during lifting. The frame adjusts from 56.57 inches to 77.57 inches in length, with a width of 32.44 inches and height of 36.87 inches.

Includes OZPED2 pedestal base, and Davit Crane Locking Collar. Ships on a pallet and requires assembly at point of use. Made in the USA.

Key Features

  • Compatible with OZ1000DAV and OZCF1200DAV davit cranes
  • Includes OZPED2 pedestal base and Davit Crane Locking Collar
  • Patent-pending floor-anchoring system enables 360-degree crane rotation under load
  • Polyurethane-tread indoor/outdoor wheels with rear swivel casters and lock brake
  • Adjustable length from 56.57 in to 77.57 in across four positions
  • Industrial-strength steel construction, powder-coat finish, made in the USA

Davit crane sold separately. Browse the full OZ Lifting collection at MTN Shop.

COMPLETE YOUR SETUP

RELATED PRODUCTS

Explore compatible accessories and related products.

Frequently Asked Questions

Which davit cranes are compatible with the OZ Lifting OZWB2 Wheel Base?
The OZ Lifting OZWB2 Wheel Base is designed for use with the OZ1000DAV Steel 1000 and OZCF1200DAV CompOZite Elite davit cranes. It comes with the OZPED2 pedestal base and Davit Crane Locking Collar included. The davit crane itself is sold separately.
Does the OZ Lifting OZWB2 Wheel Base include a pedestal base?
Yes. The OZ Lifting OZWB2 includes the OZPED2 pedestal base and a Davit Crane Locking Collar as part of the kit. It is a complete mobile base solution for OZ1000DAV and OZCF1200DAV crane users.
Can the OZ Lifting OZWB2 Wheel Base rotate under load?
Yes, only when anchored. The OZ Lifting OZWB2 includes a patent-pending floor-anchoring system that allows 360-degree crane rotation under load. When unanchored, the crane must remain in a forward position during all lifting operations to prevent tipping.
